Printed circuit board assemblies used inside battery packs operate in a uniquely demanding environment. They are often enclosed, exposed to temperature swings, subjected to charge and discharge cycles, and expected to perform reliably for years without service.
While designers frequently focus on electrical protection, thermal performance, and mechanical robustness, humidity is a risk factor that is often underestimated. Moisture exposure during manufacturing, storage, or field use can quietly undermine PCBA reliability and lead to failures that are difficult to diagnose after the fact.
Understanding how humidity affects PCBAs (printed circuit board assemblies) inside battery packs is essential for building reliable systems, especially as designs move toward higher energy density, smaller form factors, and lead-free manufacturing processes.

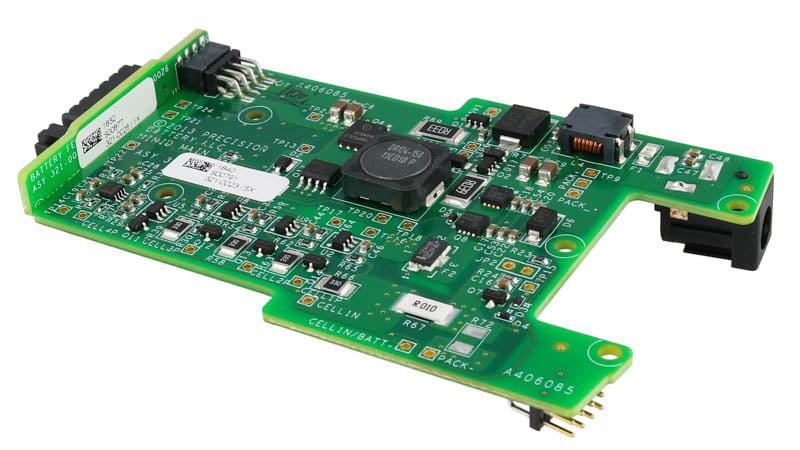

Example of a PCBA used inside a custom battery pack.
Why Humidity Is Dangerous to PCBAs
Humidity affects PCBAs at both the material and process levels. Modern printed circuit boards rely on laminated composite materials that include fiberglass reinforcement, resin systems, copper foils, and solder masks. These materials are not completely immune to moisture absorption. When exposed to elevated humidity, moisture can diffuse into the PCB stack-up, changing material properties in ways that are not always visible.
One of the most significant risks is the reduction of glass transition temperature, commonly referred to as Tg. Moisture absorbed into the resin system acts as a plasticizer, lowering the temperature at which the material softens. During lead-free soldering processes, which already operate at higher temperatures than legacy tin-lead systems, a reduced Tg increases the likelihood of excessive thermal stress. This can result in internal cracking, resin degradation, or delamination between layers.
Moisture also interferes with several key fabrication and assembly processes. Lamination quality can suffer when moisture is present in prepregs or cores, leading to weak interlayer bonds. Metallization processes such as plating and surface finishing become less reliable, and solder mask adhesion can be compromised. Over time, oxidation of exposed copper surfaces can occur, which directly impacts solder wettability and joint integrity.
Visible Effects During Assembly
Some humidity-related issues become apparent during assembly, especially during reflow soldering. Many electronic components used on battery management system PCBAs are moisture sensitive. Plastic-encapsulated integrated circuits, including quad flat packages and ball grid arrays, readily absorb moisture from ambient air.
When these moisture-laden components are exposed to reflow temperatures, the absorbed moisture rapidly vaporizes. This phenomenon, commonly referred to as popcorning, creates internal pressure that can crack the component package or cause internal delamination. These failures may not be immediately visible but can severely reduce component reliability.
Humidity can also cause PCB substrates to warp during heating. Moisture-induced expansion is rarely uniform, and this uneven dimensional change can lead to misalignment during component placement or soldering defects such as opens and insufficient solder joints. In more severe cases, excessive moisture weakens the bond between copper layers and the dielectric, leading to partial or full delamination that permanently compromises the circuit board.
Electrochemical Migration Risks
High-humidity environments also enable electrochemical migration, a failure mechanism that develops over time rather than during assembly. When moisture is present on the surface of a PCBA, it can dissolve ionic residues left behind from manufacturing processes. Under an applied voltage, these ions migrate between conductors.
This migration can lead to dendritic growth, where conductive filaments form between adjacent traces or pads. Dendrites can cause leakage currents, intermittent shorts, or complete electrical failures. At the same time, moisture accelerates corrosion of exposed metal surfaces, degrading signal integrity and increasing contact resistance.
Long-Term Risks in the Field
Inside a battery pack, humidity-related damage often progresses slowly and silently. Corrosion of traces and solder joints increases electrical resistance, which can introduce voltage drops, false readings in sensing circuits, or localized heating. Hygroscopic materials used in PCB substrates and components continue to absorb and release moisture over time, leading to shifts in electrical characteristics that may affect timing, impedance, or measurement accuracy.
Moisture can also alter dielectric properties within the PCB stack-up. Changes in dielectric constant and loss tangent can affect capacitors, insulation resistance, and high-speed signal behavior. In battery packs, where accurate voltage and current monitoring are critical for safety, even small electrical deviations can have outsized consequences.
Cleanliness Matters More Than You Think
Humidity alone is rarely the sole cause of failure. Cleanliness plays a major role in determining whether moisture becomes a problem. Pure water has low electrical conductivity and generally poses little risk by itself. However, the water film that forms on a PCBA surface is rarely pure.
Manufacturing residues are the primary source of contamination. Ionic residues can originate from bare PCB fabrication processes, although they are usually well controlled. More commonly, flux residues from soldering processes remain on the circuit board after assembly. Reflow soldering introduces flux pastes that leave behind residues with complex chemical compositions.
In reflow processes, flux residues are often encapsulated by film-forming components, which initially limit their activity. When exposed to humidity, however, these residues can release active compounds such as organic acids. Once mobilized, these contaminants dramatically increase the conductivity of surface moisture layers, accelerating corrosion and electrochemical migration.
How to Protect PCBAs from Humidity
Mitigating humidity risks requires a coordinated approach that spans material selection, design practices, manufacturing controls, and testing.
Material selection is a critical first step. While FR-4 remains the most widely used PCB material, alternatives such as polyimide laminates offer improved thermal resistance and lower moisture absorption. Specialty high-frequency laminates may also provide better moisture performance for certain applications. Selecting appropriate materials for both the PCB and components helps establish a stronger baseline for reliability.
Design decisions also influence moisture resilience. Avoiding sharp edges and extremely thin sections reduces stress concentrations that can exacerbate moisture ingress. Via placement and construction should be carefully considered to limit pathways for moisture to penetrate internal layers. Applying conformal coatings adds an additional protective barrier that shields sensitive areas without significantly impacting thermal performance.
Manufacturing practices play an equally important role. Maintaining controlled humidity levels during fabrication and assembly reduces the opportunity for moisture absorption. Thorough baking and drying procedures help remove trapped moisture before critical processes such as reflow. Packaging finished PCBAs with desiccants and moisture barrier materials protects them during storage and transport.
Finally, regular testing and monitoring are essential. Humidity testing under controlled conditions provides insight into material behavior and moisture absorption rates. Ongoing electrical testing helps identify subtle changes in performance before they develop into field failures. Adhering to IPC and ISO standards throughout design and manufacturing provides a structured framework for managing moisture-related risks.
Summary
Humidity poses a serious and often underestimated threat to PCBAs used in battery packs. From material degradation and assembly defects to long-term corrosion and electrical drift, moisture can impact reliability at every stage of a product’s lifecycle.
By understanding the mechanisms involved and addressing humidity through thoughtful material choices, robust design practices, controlled manufacturing environments, and thorough testing, engineers can significantly reduce risk. In battery-powered systems where safety and longevity are paramount, managing humidity is not optional. It is a fundamental requirement for reliable performance.
Key Takeaways
- Humidity lowers PCB material glass transition temperature, increasing the risk of delamination, warping, and thermal damage during lead-free soldering and long-term operation.
- Moisture absorbed by components and substrates can cause visible assembly defects such as popcorning, warpage, and weakened copper-to-laminate bonds.
- High humidity enables electrochemical migration and corrosion, leading to dendritic growth, leakage currents, rising resistance, and eventual electrical failure.
- Residual contaminants from soldering and fabrication greatly amplify moisture-related risks, making cleanliness control as important as humidity control.
- Protecting PCBAs in battery packs requires a combined approach of proper material selection, moisture-aware design, controlled manufacturing environments, protective coatings, and ongoing testing.
