The first time you hold a finished high-density flex circuit in your hands, it can feel a little surreal. You know how much circuitry is packed inside, how many tradeoffs were made, and how much risk sat in every design decision. Yet the finished product is thin, light, and deceptively simple. That contrast is what makes high-density flex design so rewarding and so challenging at the same time.
Designers are often drawn to flex and rigid-flex PCBs because they solve problems that rigid circuit boards simply cannot. When those designs become high-density, the designs complicate quickly. Spacing shrinks, component counts grow, and every decision begins to affect manufacturability, reliability, and cost in ways that are not always obvious at the schematic stage.
What Are High-Density Flex Circuits?
High-density flex circuits are flexible PCBs that push beyond traditional flex designs in terms of routing density, via structures, and component footprints. These designs often rely on advanced interconnect technologies such as microvias, blind vias, and buried vias to fit more functionality into smaller spaces.

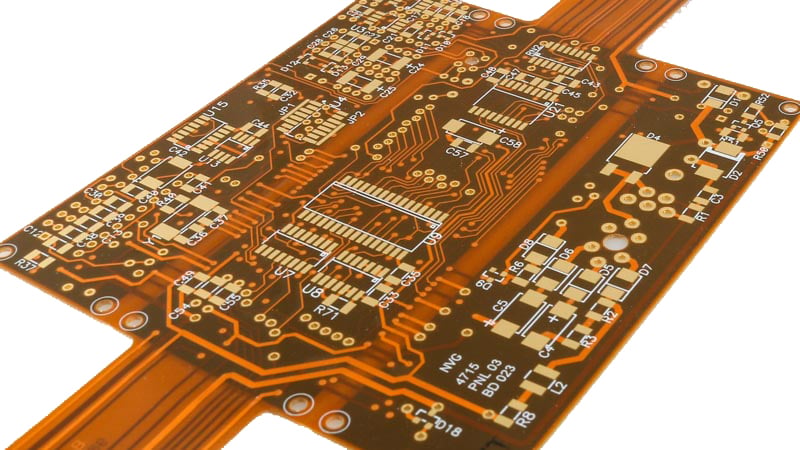

Example of a flexible PCB designed with advanced interconnect technologies.
Instead of routing across large, forgiving areas, engineers are working within tightly constrained layouts where every square millimeter matters. These circuits are often found in products where miniaturization, weight reduction, and reliability are non-negotiable.
Why Flex Circuits Excel in High-Density Applications
High-density flex circuits are often chosen because they enable product designs that would otherwise be impossible.
Weight reduction is one of the most obvious advantages. Removing bulky connectors and rigid board interconnects can significantly reduce system weight, which is critical in wearables, drones, portable medical devices, and aerospace systems.
Flex circuits also help reduce assembly complexity. In rigid-flex applications, eliminating connectors and cables reduces assembly steps and removes common failure points. Fewer interconnects often translate directly into higher long-term reliability.
The low-profile nature of flexible circuits is another major benefit. Designers can fold and route circuitry in three dimensions, allowing electronics to fit into compact enclosures and unconventional form factors.
Flex circuits also support additional capabilities such as metallic stiffeners, shielding films, and specialized materials that enable performance in demanding environments.
The Challenges That Come with Density
The advantages of high-density flex circuits come with multiple tradeoffs.
Cost is typically higher than traditional rigid designs. The materials, processing steps, and tighter tolerances required for flex manufacturing all contribute to increased fabrication expense.
Flex circuits also offer fewer material choices compared to rigid PCBs. Designers must work within a narrower material ecosystem, which can affect thermal performance, dielectric properties, and mechanical durability.
High-density flex designs introduce additional design constraints that do not exist in rigid circuit boards. Stiffeners must be placed carefully to support components. Bend radius requirements must be respected to prevent fatigue and cracking. Rigid-flex transition areas reduce usable routing space and introduce mechanical stress zones that must be carefully managed.
In many ways, high-density flex circuit designs can become just as complex as high-density rigid PCBs, but with additional mechanical and material considerations layered on top.
Tip #1:
Plan for Bend Areas Early
One of the most common mistakes in high-density flex circuit design is treating bend areas as an afterthought. However, bend regions should be considered from the earliest stages of layout.
Copper in bend areas should be routed to minimize stress concentration. Traces should avoid sharp corners and should be routed perpendicular to the bend whenever possible. Plated through holes and vias should never be placed in dynamic bend regions. Among multiple flexing layers, traces should avoid stacking to prevent stress concentrators.
Failing to account for bending during early design stages often leads to painful redesign cycles later.
Tip #2:
Use Microvias Strategically
Microvias are essential for high-density flex circuits, but they should be used thoughtfully.
They enable routing escape from fine-pitch components and allow designers to build more compact stack-ups. However, excessive microvia use can increase cost and complexity. Each additional via layer adds processing steps and can impact yield.
Balancing routing density with manufacturability is key. Designers should work closely with their manufacturer to understand via limits and stacking strategies that are both reliable and cost-effective.
Tip #3:
Respect the Rigid-Flex Transition
Rigid-flex transitions are often the most mechanically stressed areas of a design. These zones must accommodate differences in material thickness, stiffness, and thermal expansion.
Components and vias should be kept away from transition areas whenever possible. Smooth copper transitions and proper layer stack planning help reduce stress concentration.
Ignoring this region can lead to cracking, delamination, cuts and scratches, creasing, or long-term reliability issues in the field.
Tip #4:
Choose Materials Carefully
Material selection becomes even more important in high-density designs.
Polyimide thickness, adhesive systems, copper type, and coverlay construction all influence manufacturability and long-term reliability. Thin materials enable tighter bends and smaller form factors, but they can also increase handling difficulty during fabrication.
Material decisions should always be made in collaboration with a manufacturer who understands the tradeoffs involved.
Tip #5:
Think in Three Dimensions
High-density flex circuits are not just flat PCBs that happen to bend. They are three-dimensional interconnect systems.
Successful designs consider how the circuit folds, where stress accumulates, and how components align within the final enclosure. Early mechanical collaboration can prevent costly layout changes later in the project.
Tip #6:
Collaborate With Your Manufacturer Early
High-density flex circuits are not designs that should be developed in isolation. Early engagement with a manufacturing partner helps identify capability limits, cost drivers, and potential reliability risks before they become problems.
A quick design review early in the process can save weeks of redesign and significantly reduce project risk.
Summary
High-density flex circuit design sits at the intersection of electrical, mechanical, and materials engineering. When done well, the results are elegant, compact, and highly reliable systems that enable modern product innovation.
When done without the right planning and collaboration, these designs can quickly become difficult and expensive to produce.
The best approach is to treat your manufacturing partner as part of the design team from the beginning. With the right planning, communication, and attention to detail, even the most challenging high-density flex designs can move smoothly from concept to production.
Key Takeaways
- High-density flex circuits enable extreme miniaturization, weight reduction, and improved reliability by eliminating connectors and allowing true 3D routing inside compact products.
- Bend areas must be planned from the earliest design stages, since poor routing, sharp corners, or vias in dynamic flex regions can quickly lead to fatigue, cracking, and redesigns.
- Microvias are essential for dense routing and fine-pitch components, but overuse increases cost and reduces yield, making early collaboration with your manufacturer critical.
- Rigid-flex transition zones and material selection have a major impact on long-term reliability, especially where mechanical stress, thickness changes, and thermal expansion intersect.
- Successful high-density flex designs depend on early cross-functional collaboration between electrical, mechanical, and manufacturing teams to reduce risk, avoid redesign cycles, and control cost.
