If you have ever walked across a carpeted floor in the winter and touched a metal doorknob, you have experienced electrostatic discharge firsthand. The quick snap and jolt may be surprising, but for most people, it is harmless and quickly forgotten. For electronics, however, that same event can be far more serious.
When sensitive electronics are exposed to electrostatic discharge, even a brief event can cause malfunctions, component damage, or complete system failure. That risk becomes important when designing human-machine interfaces (HMIs) such as keypads, membrane switches, and touchscreens, which are often the first point of contact between a user and an electronic device.
Understanding how electrostatic discharge occurs and how to design around it is critical when developing reliable HMI systems for demanding environments.
What Is Electrostatic Discharge (ESD)?
Electrostatic discharge, commonly referred to as ESD, occurs when an electrical charge built up on one surface suddenly transfers to another surface with a different electrical potential. This transfer often happens when a person touches a conductive or earth-grounded object after accumulating static electricity.
The voltages involved in ESD events can be surprisingly high. Under common environmental conditions, static charges can range from several thousand volts to well over 10,000 volts. Fortunately, the current involved in these events is extremely small, and the discharge occurs very quickly. Because of this, most people experience nothing more than a brief shock or jolt.
While these events are typically harmless to people, they can be extremely damaging to sensitive electronics. Semiconductor devices and delicate circuit traces can be affected by ESD levels far lower than what a person can even feel.
What Is an HMI?
A human-machine interface, or HMI, is any device or component that allows a person to interact with a machine or electronic system. These interfaces are used across countless industries, including medical devices, industrial equipment, aerospace systems, and consumer electronics.
HMIs come in many forms. Common examples include keyboards, touchscreens, push-button assemblies, and control panels. Any device that translates a human action into a machine command falls into this category.
Because HMIs are designed to be touched, pressed, or handled frequently, they are often exposed to electrostatic discharge events. That makes ESD protection an essential consideration during the design phase, and especially important during manufacturing and post assembly handling.
Why ESD Can Be Harmful to Electronics
Electrostatic discharge poses a serious threat to electronic systems because it introduces a sudden burst of voltage and current into circuits that are not designed to handle it. Even small ESD events can cause permanent damage to sensitive components.
In HMI systems, ESD events can lead to a variety of issues. Displays may malfunction or fail. Keypads and touch interfaces may stop responding correctly. LEDs and indicator lights can become damaged. In more severe cases, an ESD event can propagate through the mating PCBA and impact the entire system.
The consequences can extend beyond hardware damage. When an HMI fails, the device it controls may become unusable. In industrial environments, this can result in equipment downtime. In medical or safety-critical systems, the consequences can be even more significant.
What Causes and Exacerbates ESD?
Several environmental and operational factors can increase the likelihood of electrostatic discharge events.
- Low relative humidity is one of the most common contributors. Dry air allows static charges to accumulate more easily on surfaces and people. This is why ESD events tend to increase during winter months when indoor air becomes very dry.
- Improper climate control in assembly areas can also contribute to ESD buildup. Facilities that lack humidity management or proper ESD-safe workstations can unknowingly create environments where sensitive electronics are exposed to repeated discharge events.
- Geographic location can play a role as well. High-altitude locations and desert environments, such as parts of Colorado or high-desert regions of California, naturally experience lower humidity levels that increase static buildup.
- Wearing an ESD wrist strap matters. Operators who are not properly grounded through ESD wrist straps or workstation grounding systems can inadvertently discharge static electricity into sensitive components during handling.
- Footwear can also influence ESD risk. Many people notice that certain electrically insulated shoes tend to build up static charges more easily. This is why someone might frequently experience a shock when touching a light switch or a metal surface while wearing certain types of shoes.
- Packaging practices are another important consideration. Sensitive HMIs and electronics should be protected using anti-static materials such as pink anti-static bubble wrap, ESD foam, or static-dissipative bags. Proper labeling with ESD caution markings also helps ensure careful handling.
- Finally, training plays a critical role. Personnel who are not properly trained in ESD handling procedures may unknowingly damage sensitive electronics simply through routine handling.
Five Tips to Improve the ESD Resilience of HMIs
Design engineers have several strategies available to improve the ESD robustness of HMI assemblies.
1. Use an ESD Mylar Shield Layer with a Grounding Tab
A metalized Mylar shielding layer can be incorporated into the stack-up of a membrane switch. This shield layer is designed to cover sensitive electronic areas within the keypad. A grounding tab provides a termination point where the shield can be connected to the system ground, allowing static charges to be safely dissipated.

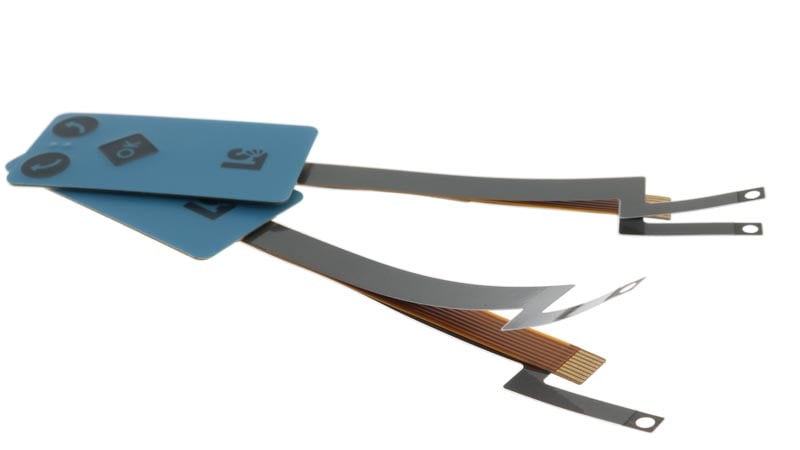

HMI with metalized foil tail with grounding provisions.
2. Incorporate an ESD Shield Layer Within the Flexible Circuit
An additional shielding layer can be integrated directly into the flexible circuit used in many membrane switch assemblies. This layer may be created using etched copper on a flexible printed circuit or conductive ink printed onto PET substrates.
A grid pattern of conductive material is typically used and must be properly tied to ground. This approach provides a path for ESD energy to be safely redirected away from sensitive circuitry and LEDs.

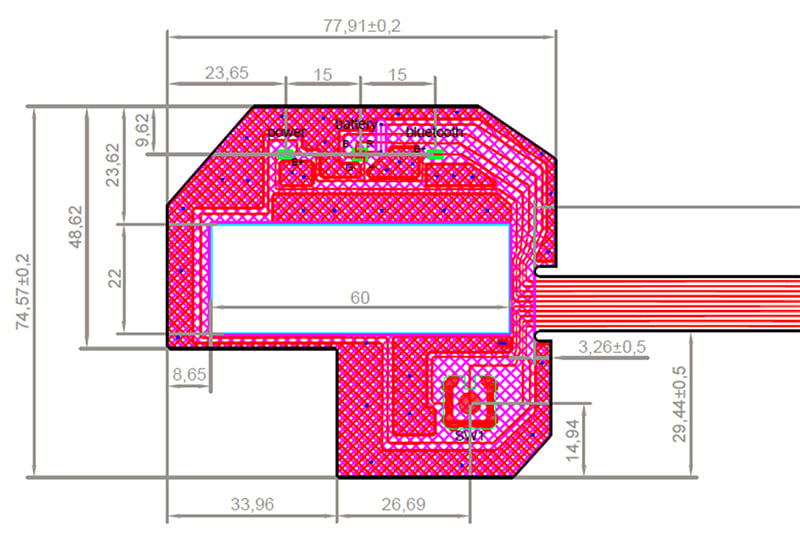

ESD shielding grid has been added to the internal layers of this membrane switch.
3. Use ESD-Hardened Components
Not all electronic components respond to ESD events in the same way. Some LEDs, switches, and integrated components are specifically designed to tolerate higher ESD levels.
When developing an HMI assembly, designers should specify the required ESD performance levels and select components that meet or exceed those requirements. Choosing more robust components early in the design process can significantly improve system reliability and prevent the need for additional redesign and layout activities.

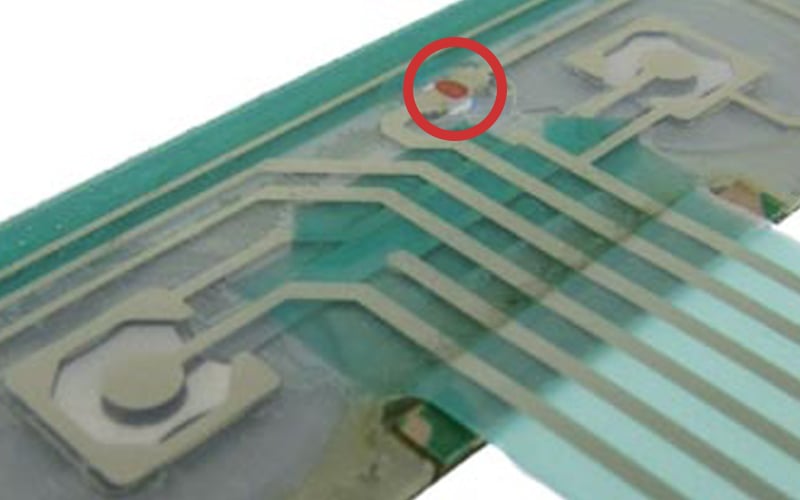

ESD hardened LEDs are capable of surviving higher ESD events.
4. Integrate Aluminum Foil Shielding into the Keypad
For applications that require more aggressive shielding, aluminum foil layers can be incorporated into the keypad stack-up. A thin aluminum foil layer can provide excellent protection against ESD as well as radiated emission and susceptibility.
The foil thickness must be selected carefully so that it does not interfere with the tactile performance of the keypad buttons.

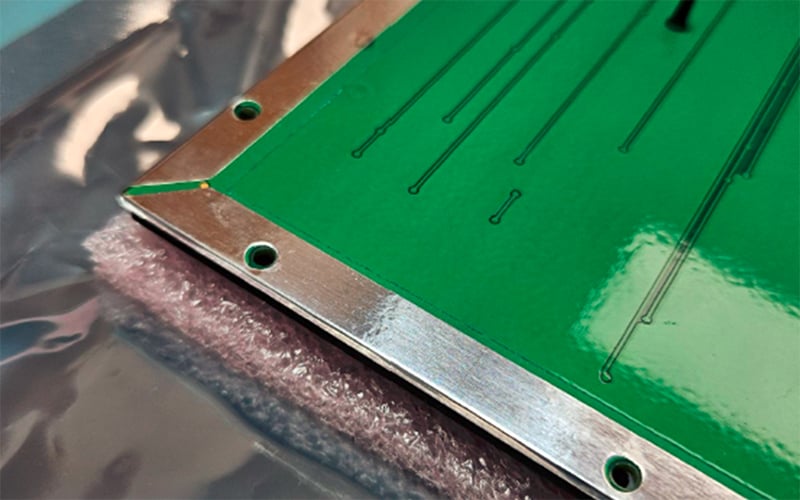

0.005” thick aluminum foil is wrapped around the front face of the keyboard assembly to provide shielding and mitigate the effects of ESD.
5. Add ESD Protection to the Mating PCBA
ESD protection should not stop at the keypad or touchscreen interface. The mating PCBA can also include protective components such as ESD diodes, TVS diodes, and other surface mounted components.
These devices help attenuate or block voltage spikes before they reach sensitive integrated circuits. Proper component selection and placement are critical to ensure that these protection devices perform effectively.
Summary
Human-machine interfaces are the front line of interaction between people and electronic systems. Because they are touched constantly, they are also one of the most common entry points for electrostatic discharge events.
By understanding the causes of ESD and incorporating protective strategies during the design phase, engineers can significantly improve the reliability of HMI systems. From shielding layers and robust components to thoughtful grounding strategies, small design decisions can make a major difference in protecting electronics from unexpected discharge events.
Key Takeaways
- ESD events can reach thousands of volts, even though the current is small enough that humans only feel a brief shock. Sensitive electronic components in HMIs can be damaged by ESD levels far below what a person can feel.
- HMIs are especially vulnerable to ESD because they are touched directly by users. Keypads, displays, and control panels can act as entry points where static discharge reaches internal electronics.
- Environmental conditions play a major role in ESD risk. Low humidity, high-altitude environments, electrically insulated footwear, and poor grounding practices all increase the likelihood of electrostatic buildup and discharge.
- Shielding layers and proper grounding strategies are critical. Techniques such as metalized Mylar shields, conductive grid layers in flexible circuits, and aluminum foil shielding can help safely redirect electrostatic energy away from sensitive electronics.
- System-level protection improves reliability. Combining ESD-hardened components, protective diodes on the PCBA, and proper packaging and handling procedures create multiple layers of defense against electrostatic damage.
