A flexible circuit coverlay is a polyimide-based protective layer laminated over exposed circuitry in a flex PCB. It performs the same role as solder mask on rigid circuit boards, while maintaining the flexibility and durability required for bendable designs. Proper material selection, thickness, and opening design are critical to ensuring both protection and functionality.
Flexible circuit coverlays, also referred to as coverfilms, are used in flex PCB manufacturing to encapsulate and protect external circuitry. It serves as the primary protective barrier over conductive traces while allowing specific areas to remain exposed for component attachment.

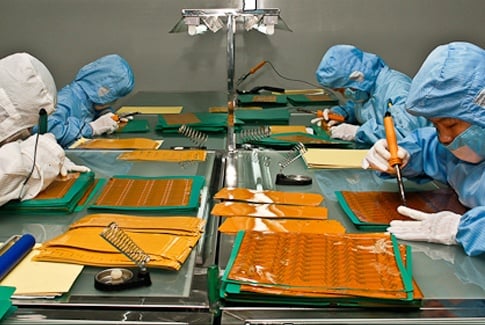

Polyimide Coverlays Aligned and Tacked Into Place On Production Panels Prior To
Coverlay Lamination Process.
Functionally, a coverlay replaces the solder mask used on rigid PCBs. However, unlike a rigid solder mask, it is specifically engineered to maintain flexibility and mechanical durability, making it suitable for circuits that must bend or flex during use.
Primary Function in Flex PCB Design
The coverlay performs several essential roles within a flexible circuit:
- Protects exposed conductive traces from environmental and mechanical damage
- Provides electrical insulation across the circuit surface
- Maintains structural integrity during repeated flexing
- Allows selective exposure of pads and component attachment areas
Because flex circuits are often used in dynamic or space-constrained applications, the coverlay must balance protection with the ability to flex without cracking or delaminating.
Material Composition and Construction
A coverlay is built from two primary elements:
- A solid sheet of polyimide
- A layer of flexible adhesive
These layers are laminated directly onto the circuit using heat and pressure to create a durable, bonded protective surface. The polyimide provides mechanical strength and thermal stability, while the adhesive ensures reliable adhesion to the underlying circuitry.
This laminated construction allows the coverlay to conform to the flex circuit while maintaining consistent protection across its surface.
Openings for Components and Features
Openings in the coverlay are required to expose pads and connection points for components.
These openings are created after lamination alignment using one or more of the following:
- Mechanical drilling
- Routing
- Laser cutting
This process enables precise definition of exposed areas while maintaining full protection over the remaining circuitry. Proper opening design ensures reliable assembly without compromising the protective function of the coverlay.
Typical Coverlay Thickness Options
Coverlay thickness is a key design parameter that impacts both flexibility and durability.
Common construction:
- Polyimide thickness = 0.001 inches
- Adhesive thickness = 0.001 inches
Additional available options:
- 0.0005 inches polyimide (used when thinner construction is required)
- 0.002 inches polyimide (used when additional durability is needed)
- 0.0005 inches adhesive (used when thinner construction is needed and the copper is thin enough)
- 0.002 inches adhesive (used when thicker adhesive is needed to laminate to 2oz of copper)
Thickness selection depends on the specific mechanical and design requirements of the flex circuit.
Flexibility and Durability Compared to Solder Mask
While coverlay and solder mask serve the same protective function, they differ significantly in performance characteristics.
- Coverlay is designed to withstand bending and repeated motion
- It provides greater mechanical durability in flexible applications
- It maintains adhesion and protection under flexing conditions
Rigid PCB solder mask does not offer these properties, making coverlay essential for any flex or rigid-flex design exposed to movement or stress.
Summary
A flexible circuit coverlay is a polyimide-based protective layer laminated over exposed circuitry in a flex PCB, serving the same function as solder mask on rigid boards while maintaining flexibility. It is constructed from a polyimide film and adhesive, applied under heat and pressure, with precisely created openings to expose component pads.
Coverlay thickness and construction are carefully selected to balance protection, durability, and the ability to withstand repeated bending without compromising circuit performance.
Key Takeaways
- A coverlay is a polyimide-based protective layer applied to flex PCBs.
- It replaces solder mask while maintaining flexibility and durability.
- It is constructed from polyimide and adhesive, laminated under heat and pressure.
- Openings are precisely created to expose component connection points.
- Thickness selection balances flexibility with mechanical protection.
