In the evolving world of human-machine interfaces (HMIs) such as keypads and membrane switches, the demand for backlit components continues to grow across countless applications. These backlit products include industrial controls, medical devices, consumer electronics, and automotive systems.
Whether it's a membrane switch panel on a production floor, an injection molded button in an in-vehicle infotainment system, or a silicone keypad on a medical device, backlighting plays a critical role in usability and user satisfaction.
But designing effective backlit HMIs is no easy task. It’s a delicate blend of engineering precision and subjective user experience. A backlighting scheme that looks perfect to one stakeholder may fall short for another. Even worse, poorly controlled backlighting designs can introduce hotspots, glare, or inconsistencies that degrade the user’s experience. Fortunately, with careful attention to details such as window transparency, material selection, and painting techniques, manufacturers of these devices can provide consistent and aesthetically pleasing results for all industries.
Backlighting in Membrane Switches
Membrane switches are one of the most common HMI formats for flat-panel electronic interfaces. Constructed with multiple layers, including a circuit layer, adhesive layers, and a graphic overlay, they are valued for their durability, slim profile, and clean design. Backlighting in membrane switches enhances visibility in low-light environments and provides intuitive feedback for the user.

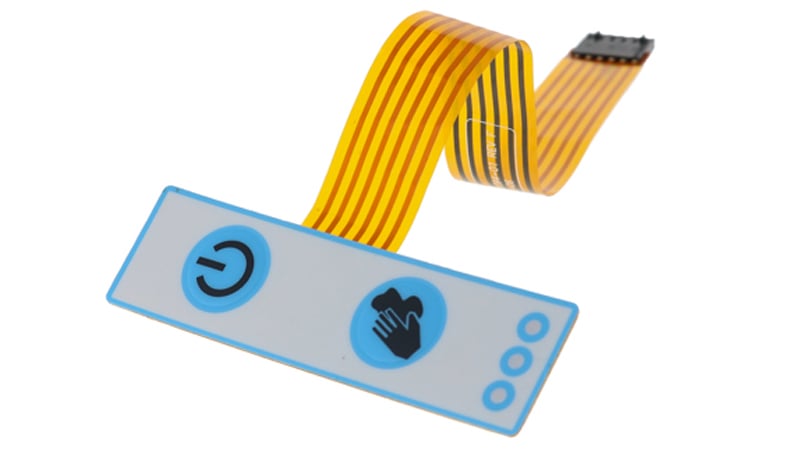

Membrane switch with three LED windows frosted with white paint.
To integrate LEDs, small surface-mount components like 0603- or 0805-sized discrete LEDs are bonded directly onto the circuit layer. Above each LED, a transparent or translucent window is aligned in the graphic overlay.
Depending on design requirements, the window can be embossed to raise it slightly from the surface or painted with varying layers of white or translucent ink to diffuse the light. These adjustments help control brightness and uniformity while allowing icons or indicators to remain clear and legible.
Graphic Overlays and Their Role in Backlighting
Graphic overlays are the topmost visual layer on membrane switch assemblies or standalone control panels. While overlays themselves do not contain LEDs, they act as the viewing surface through which the backlight shines. This makes their material and window treatments critical to the overall user experience.

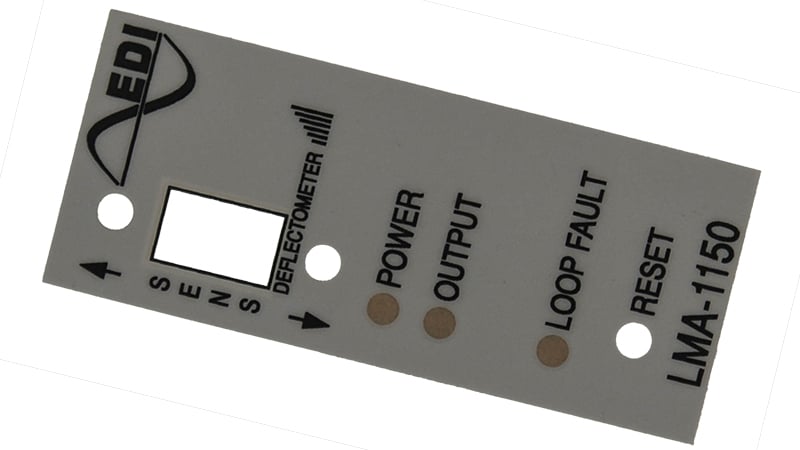

Graphic overlay with smoke colored LED windows to attenuate the brightness.
Like in membrane switches, transparent windows in overlays are placed above LEDs located on the underlying circuit. These windows can be left clear for maximum brightness or treated with diffusive paints and embossing to reduce hotspots and glare. Because backlighting effectiveness is closely tied to the overlay’s material properties, designers must consider clarity, texture, and the number of coats of paint in their stack-up planning.
Silicone Keypads: Compression Molded Elastomer
Silicone elastomer keypads are widely used in medical equipment, handheld electronics, and rugged industrial controls. These keypads offer tactile feedback with flexible customization of shape, color, and illumination. Silicone keypads can also be designed as sealing members with ribs and gaskets being formed into the design. To enable backlighting, the silicone material used within the keypad must be either transparent or translucent.
Designers frequently specify dual-layer or tri-layer painting techniques to enhance lighting contrast. A common method involves painting the keypad white, followed by a black layer, and then laser-etching away the black to expose desired icons or legends. When backlit from beneath with surface-mounted LEDs, the etched sections illuminate cleanly while the surrounding area remains opaque, ensuring high visibility even in dim conditions.
Silicone molded buttons with laser etched icon- right button is backlit.
The key to success lies in balancing material thickness, paint opacity, and LED placement. Too little diffusion can lead to hot spots; too much can wash out the icons. Engineers often experiment with multiple prototypes to find the best blend of brightness, contrast, and durability.
Injection Molded Buttons
Injection molded buttons are commonly used in medical devices, appliance interfaces, and more complex industrial equipment. Sometimes referred to as hard keycaps, these buttons are typically molded from PC (polycarbonate) or ABS (acrylonitrile butadiene styrene), both of which offer strength, temperature resistance, and excellent surface finish. For backlit designs, clear or translucent resins must be selected during molding.
As with silicone keypads, the most popular approach involves painting the button with multiple layers, typically white and black, and then laser-etching through the topcoat to expose clear areas for light transmission. The LED is mounted on the underlying circuit, and light passes through the etched area to create icons or labels. Injection molded materials such as PC and ABS offer a high level of dimensional stability, making them ideal for tight tolerance assemblies with demanding backlighting needs.
Material consistency and molding precision are crucial here. Even minor flaws in resin clarity or wall thickness can affect how evenly light is distributed through the button surface.
How to Improve Backlighting for Transparent Windows
Designing for backlight performance requires more than selecting the right LED, it demands a thoughtful combination of materials, coatings, and layout.
Here are some proven techniques:
- Use water-clear materials for window areas when maximum brightness and transparency are needed.
- Select translucent materials if light diffusion is desired to reduce hot spots or glare.
- Apply one or more layers of white paint to the back side of windows to soften and spread light evenly. Each additional layer increases diffusion.
- Build several prototypes with different window treatments to evaluate lighting uniformity under real-world conditions.
- Use black light-block paint as needed to mitigate light bleed and mask regions that should not be backlit.
- Adjust LED intensity with PWM (pulse-width modulation) or current-limiting resistors if brightness control is needed.
- Avoid placing LEDs too close to the surface without adequate diffusion material between the light source and the viewing window.

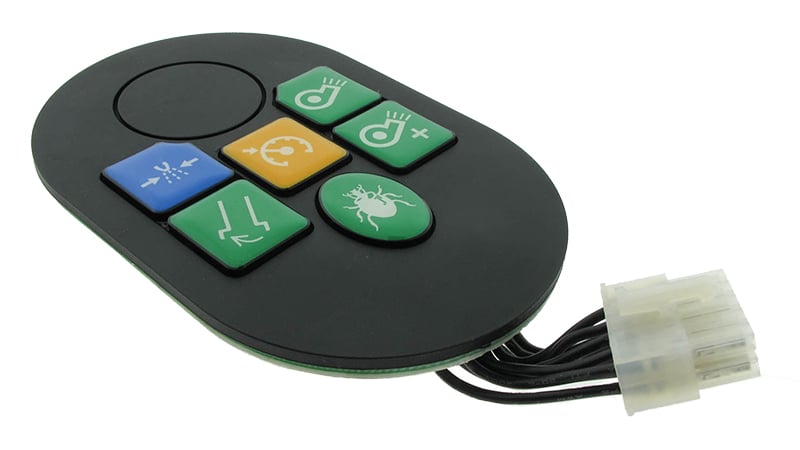

HMI with painted hard keypads that will be backlit.
Summary
Backlighting may seem like a visual design feature at first glance, but it’s deeply rooted in material science, electronics, and human factors engineering. By understanding how window transparency, paint layers, and LED positioning impact backlight uniformity, engineers can create highly functional and visually striking HMIs.
Whether you’re designing a flat membrane switch, a soft-touch silicone keypad, or a molded plastic button, the principles of controlled light transmission remain the same, and they’re essential for delivering intuitive, high-quality user experiences.
Key Takeaways
- Backlighting in HMIs improves usability and feedback but is often subjective and hard to define in specs.
- Transparent windows in overlays or button surfaces must be carefully designed to balance brightness and diffusion.
- Material selection for overlays, silicone, or plastic resins plays a vital role in how well light is transmitted or scattered.
- Paint layering and laser etching are popular and effective ways to achieve crisp backlit icons or indicators.
- Building and testing multiple prototypes is the best way to fine-tune backlight performance before full-scale production.
