Wearable devices such as smartwatches, wearable cameras, ECG monitors, and fitness trackers depend on custom battery packs that can deliver reliable power within extremely compact form factors. As these devices become smaller, lighter, and more mobile, battery pack design requires balancing competing requirements that include energy density, battery life, safety, durability, and user comfort.
The challenge is not simply storing enough energy. The battery pack must fit within limited available space while supporting the device's intended functionality and operating environment.
Key Battery Pack Requirements for Wearable Devices
Space Constraints and Energy Density
Space is one of the most significant limitations in wearable technology. The physical dimensions of the device directly limit the size of the battery pack, which in turn affects the amount of energy the pack can store.
To maintain acceptable operating times between charging cycles, wearable devices often require battery packs with high energy density. Higher energy density allows more energy to be stored within a smaller footprint, helping extend runtime without increasing device size or weight.
Frequent charging can reduce the practicality and convenience of wearable devices, making efficient energy storage a key design consideration.

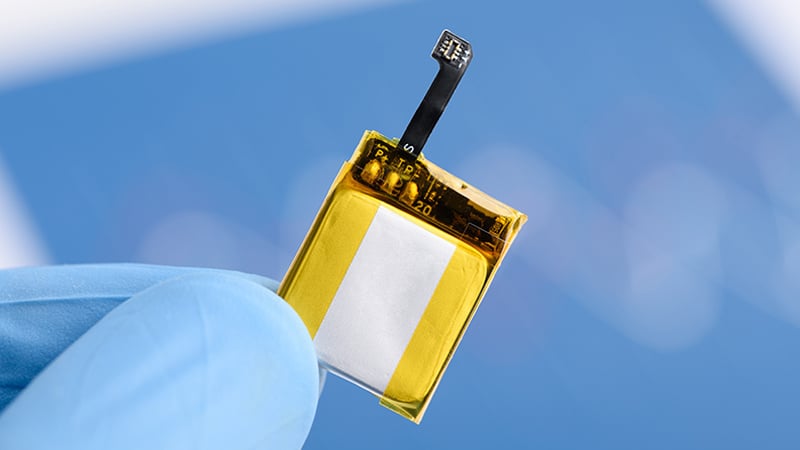

Small rechargeable lithium Li-ion battery for wearable device.
Power Management Considerations
Battery capacity alone does not determine how long a wearable device operates. Power consumption from onboard electronics plays an equally important role.
Components such as sensors and communication technologies can place significant demands on the battery. Selecting components that consume less power can help reduce energy use, extend operational life, and decrease charging frequency.
Effective power management requires evaluating both the battery pack and the electrical systems it supports.
Environmental and Safety Challenges
Wearable devices are regularly exposed to conditions that can affect battery performance and reliability.
These conditions may include:
- Shock and vibration
- Physical impacts
- Moisture from rain
- Sweat exposure
- Heat generated during operation
- Heat created during charging and discharging
Battery pack designs must account for these environmental factors while protecting against short circuits, overheating, and other thermal chemical mishaps. Managing heat dissipation while maintaining mechanical protection is an important part of the overall design process.
Balancing Energy Density and Battery Size
Wearable devices are commonly worn on the wrist, attached to an arm, or mounted near the eyes or head. As a result, both the battery pack and its electrical connections often require significant miniaturization.
Exploring newer battery chemistries such as metal-air batteries, are future advances that hold greater power possibilities for wearables. While not yet viable, this battery allows air to flow through the cell and interact with the electrodes. With advancing technology, metal-air batteries will theoretically have greater energy density than lithium-based cells.
Reducing battery size can limit the amount of stored energy available to the device. To address this constraint, designers frequently evaluate battery chemistries that deliver higher energy density within smaller form factors.
Advances in lithium-based batteries, including lithium-ion, lithium-ion polymer, and lithium-manganese-oxide chemistries, can provide higher energy densities while supporting thinner and lighter battery designs.
Emerging Chemistry Developments
Metal-air batteries are potential future technology for wearable applications.
Although described as not yet viable for these applications, metal-air batteries allow air to interact with the cell electrodes and are presented as a future possibility for achieving greater energy density than lithium-based cells.
Extending Battery Life Without Increasing Battery Size
Because wearable devices have limited room for larger battery packs, improving battery life often requires reducing overall power consumption.
One approach is limiting the number of power-consuming components. However, reducing functionality can negatively affect device performance and user experience. A more practical approach is selecting components designed for low power consumption.
Examples include:
- Using Bluetooth instead of Wi-Fi communication
- Implementing power-saving operating functions
These approaches can help extend battery life without requiring larger battery packs.
Alternative Charging Concepts
Manufacturers are also exploring methods that help supplement battery power through energy generated by the user or the surrounding environment.
User movement or environmental energy may contribute to charging the battery without relying entirely on conventional charging methods. Wireless charging is also identified as a potential future opportunity for wearable battery pack designs.
Safety Considerations for Wearable Battery Packs
Safety remains a critical requirement for wearable devices, particularly wearable medical devices.
Lithium-based battery systems must comply with national and international regulations governing the transportation and use of cells. Thermal management is a primary concern because excessive heat buildup can contribute to thermal runaway, cell swelling, and degradation of internal device components.
Protection Against Physical Damage
Wearable devices may experience impacts and shocks more frequently than many stationary electronic systems.
These events can:
- Loosen electrical connections
- Damage battery pack components
- Pierce the battery pack structure
To address these risks, battery pack designs should consider temperature control, heat venting, and protection against shock, vibration, and impact.
Battery Monitoring and Control Systems
Software-based monitoring can also contribute to safer operation of wearable devices. Software controls to monitor battery health and help prevent:
- Over-charging
- Over-discharging
- Short circuits
These monitoring functions can support safer battery operation throughout the life of the device.
Moisture and Corrosion Resistance
Wearable devices are frequently exposed to water, rain, and perspiration.
Protecting battery pack connections from moisture intrusion and corrosion can help prevent damage to metal pins and other critical electrical interfaces.
How Wearable Applications Influence Battery Pack Design
The intended application can significantly affect battery pack requirements.
Many wearable products are attached to body locations that move frequently, including the wrist, arm, and head. These applications may require battery solutions that accommodate bending or flexing as part of normal use.
The battery pack must therefore balance several competing objectives:
- Durability under movement and impact
- Flexibility where required by the application
- Low weight for user comfort
- Reliable electrical performance
Material selection becomes important when designing battery packs that need to remain comfortable during extended wear while also withstanding the mechanical demands of the application.
Summary
Designing battery packs for wearable technology requires balancing limited space, energy density, battery life, safety, and application-specific mechanical requirements. High-energy-density battery chemistries, power-efficient electronics, thermal management strategies, and protective design features all contribute to overall system performance.
As wearable devices continue to evolve, battery pack design remains a critical factor in achieving the desired combination of functionality, reliability, comfort, and operational life.
Key Takeaways
- Balancing Energy Density and Size: Wearable devices require compact, lightweight battery packs with high energy density to ensure long operational life without increasing bulk. Lithium-based chemistries such as lithium-ion and lithium-polymer provide efficient power in thin, flexible profiles.
- Battery Life Optimization Strategies: Reducing power consumption by selecting energy-efficient components, switching to low-power communication methods like Bluetooth, and exploring wireless or motion-based charging can help extend battery life without increasing battery size.
- Safety Considerations in Wearable Tech: Batteries in wearable devices must withstand impacts, moisture, and high temperatures. Implementing venting, shock resistance, and software monitoring for battery health helps prevent overheating, short circuits, and degradation.
- The Role of Application-Specific Design: Wearable devices often require batteries that can bend and flex while maintaining durability. Material selection and design innovations ensure battery packs are rugged enough to handle movement while remaining comfortable for prolonged wear.
- Future Innovations in Wearable Batteries: Emerging technologies like metal-air batteries and advanced energy harvesting solutions hold the potential to revolutionize wearable battery design, offering increased energy density and self-sustaining power solutions.
