In today’s increasingly connected world, high-speed digital signaling is no longer limited to specialized applications; it’s now a requirement across a broad spectrum of industries, including aerospace, medical, automotive, and advanced communications.
As devices become more compact and performance-driven, rigid-flex PCB designs are stepping in as the go-to solution for engineers who need reliability, mechanical flexibility, and compact packaging in one.
But with that flexibility comes complexity, especially when dealing with signal integrity in high-speed designs. Issues like impedance mismatch, signal reflection, noise coupling, and timing errors become far more pronounced when traces cross between rigid and flexible sections, and managing those transitions effectively becomes critical.
Let’s explore the key signal integrity challenges in rigid-flex PCB design and how experienced engineers overcome them.

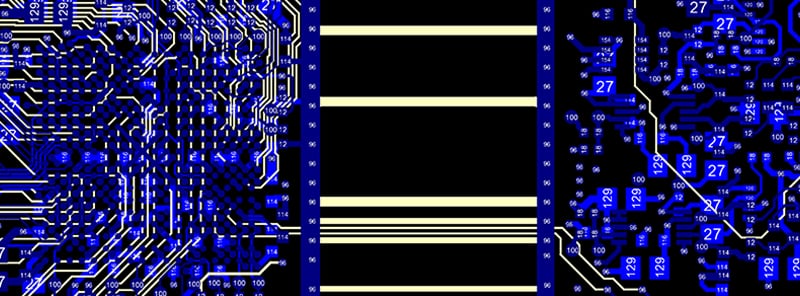

An example of the dense circuits in a multi-layer rigid-flex PCB.
High-Speed Demands Are Becoming the Norm
Modern electronics demand faster, more efficient data transmission. Whether you're routing Ethernet lines, USB 3.x, HDMI, or LVDS, these high-speed interfaces require precise electrical behavior. And with rigid-flex PCB designs often being the layout of choice for tight, 3D packaging constraints, especially in implantable medical devices, aerospace control systems, and compact networking gear, the margin for error is razor-thin.
In rigid-flex PCBs, high-speed traces must often cross multiple material interfaces, flexing zones, and different dielectric structures, which can severely affect signal performance if not properly managed. This management can be difficult to calculate and apply, given the differing requirements in flex and rigid sections.
Impedance Control: The Foundation of Signal Integrity
At the heart of every high-speed design is one critical parameter: impedance. For differential or single-ended signals, maintaining consistent impedance along the entire length of a trace is essential. Any deviation can cause signal reflections, degraded rise times, and timing issues, all of which can disrupt communication protocols or cause outright system failure.
Impedance control in a rigid PCB is already a tightly engineered process. In rigid-flex, it becomes even more challenging due to the variable dielectric environments, layer stack-up changes, and geometry shifts between rigid and flex zones.
The Crosshatch Dilemma
In the flexible portions of the PCB, engineers often use crosshatched ground planes instead of solid copper to improve flexibility. While this enhances bendability, it introduces discontinuities in the return path, making impedance control more difficult.
If crosshatching is necessary, tightly woven patterns should be used to maintain electrical continuity and reduce impedance variation.
Rigid vs. Flex Impedance Calculations
Calculating impedance in a rigid section is straightforward. Materials and dielectric constants are well-known and consistent. However, once the signal transitions into the flex region, the rules change. The dielectric materials, copper weights, and layer spacing differ, meaning the impedance must be recalculated.
The typical approach? Adjust trace width and spacing between the rigid and flex regions to maintain consistent impedance. This transition must be carefully planned in the layout stage and validated through simulation or modeling. If the impedance simulations become too much for you to do, the best solution is to consult a PCB manufacturer such as us, as we have calculation software to help verify and match impedance requirements.
Stack-Ups: Designing with Air Gaps and Shielding
Rigid-flex stack-ups must balance both electrical and mechanical performance. One effective way to help with signal integrity is to use air gap constructions in any flexible regions. This method requires only a single ground reference plane for controlled impedance traces, simplifying impedance management while reducing stiffness.
Shielding Options
High-speed signals are especially prone to electromagnetic interference (EMI) and crosstalk, especially when routed through densely populated environments. In rigid-flex circuit board designs, adding shielding layers in the flex zone can dramatically improve signal integrity, but it comes with tradeoffs.
- Copper shield layers are effective but increase the layer count, stack-up thickness, and overall cost.
- Shielding films, such as conductive laminates or tapes, offer a lightweight alternative and can provide adequate protection without impacting flexibility as significantly, however, availability of the material is limited.
The shielding method should be selected based on the frequency of the signals, flexibility requirements, cost sensitivity of the application, and recommendation by the PCB manufacturer.
Controlled Dielectric Thickness: A Must for Precision
For signals like USB 3.1, PCIe, or HDMI, impedance requirements are very specific, typically 50 ohms for single-ended lines or 90 to 100 ohms for differential pairs. Achieving those numbers isn't just about line width and spacing; the dielectric thickness and material properties between the signal and reference planes are equally critical.
Rigid-flex PCBs complicate this further by introducing different dielectric thicknesses in rigid and flex zones. Using impedance calculators or working directly with your manufacturer to validate the trace geometry against the actual materials in use is the best practice.
At Epec, our engineering team supports customers by providing design for manufacturability (DFM) guidance, impedance modeling, and stack-up recommendations to ensure your high-speed design is not only electrically functional but also manufacturable and reliable.
Consult Early, Design Smart
Rigid-flex PCB design is a collaborative effort. Especially when dealing with high-speed signaling, it’s important to involve your manufacturing partner early in the design process.
At Epec, we help engineers navigate the challenges of impedance-controlled designs by offering:
- Stack-up reviews tailored for mixed rigid-flex impedance control
- Trace width and spacing recommendations based on tested manufacturing processes
- Impedance modeling support using your actual material set
- Guidance on crosshatch designs and shielding strategies in flex regions
- Real-world feedback from hundreds of successful rigid-flex builds
Summary
Signal integrity in high-speed rigid-flex PCB designs is no trivial matter. From impedance discontinuities to shielding complications and cross-material transitions, the design challenges are many, but they’re not insurmountable. With careful planning, validated calculations, and a manufacturer who understands both the electrical and mechanical realities of rigid-flex construction, your design can meet the performance standards demanded by today’s most advanced technologies.
If you’re working on a rigid-flex project with high-speed requirements, don’t leave signal integrity to chance. Reach out to Epec’s engineering team. We’re here to help you solve design problems before they become production headaches.
Key Takeaways
- Consistent Impedance is Critical Across Rigid and Flex Zones: Signal integrity hinges on maintaining uniform impedance. Variations between rigid and flex materials, copper thickness, and geometry can cause signal reflections and degrade high-speed performance if not properly managed.
- Crosshatched Ground Planes Trade Flexibility for Electrical Complexity: While crosshatching increases bendability in flex regions, it disrupts the return path and creates impedance discontinuities. Engineers must use tightly woven patterns or alternative layouts to minimize these issues.
- Controlled Dielectric Thickness Matters More Than You Think: High-speed protocols like USB 3.1 and PCIe require precise impedance, which is heavily dependent on dielectric thickness. Variations between rigid and flex sections mean designs must be carefully simulated and validated against real materials.
- Shielding Improves Signal Integrity but Comes with Tradeoffs: EMI and crosstalk are more problematic in high-speed rigid-flex circuits. Shielding options like copper layers or shielding films can help, but they add cost, thickness, or limit flexibility, so they must be chosen carefully.
- Early Collaboration with Your Manufacturer Prevents Costly Mistakes: Rigid-flex high-speed design isn't plug-and-play. Involving your PCB manufacturer early for stack-up review, impedance modeling, and trace optimization ensures electrical performance without compromising manufacturability.
