Flexible heaters are one of the most versatile thermal solutions available today. Designed for precise temperature control, these heaters can conform to complex surfaces and integrate seamlessly into assemblies where space is limited.
Their low profile, high reliability, and ability to perform across a wide range of temperatures make them ideal for applications spanning from medical and aerospace systems to consumer electronics and industrial equipment.
Whether used to prevent condensation, maintain process temperatures, or protect critical components in cold environments, flexible heaters offer a balance of efficiency and customization that traditional heating elements often can’t match.

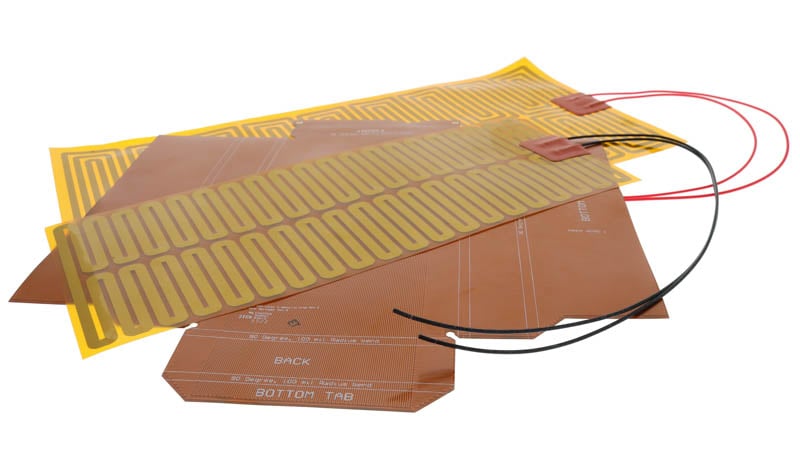

Flexible heaters are used across various industries.
Common Devices and Applications
Flexible heaters can be found in countless devices where compact, targeted heating is required. Some of the most common examples include:
- Oil reservoirs, where heaters maintain fluid viscosity and prevent solidification in cold environments.
- Battery assemblies, which often use thin-profile heaters to stabilize internal temperature for optimal charge and discharge performance.
- Aluminum plates or heat sinks, where heaters evenly distribute thermal energy for manufacturing or testing systems.
- LCDs, which rely on flexible heaters to maintain optical clarity in extremes such as low temperatures or outdoor environments.
- Medical devices, including patient warming systems, diagnostic instruments, and portable analyzers, where uniform heat delivery is critical for reliability and safety.
Each of these applications requires careful integration of the heater into the enclosure or overall assembly. Proper power management, mounting, and thermal control determine whether the system operates efficiently or experiences premature failure.
Key Considerations for Integrating Flexible Heaters
Power Source and Electrical Design
The first step in integrating a flexible heater is understanding its electrical requirements. The heater must be supplied with the correct voltage and current to operate efficiently and safely. A mismatch in power input can result in uneven heating, underperformance, or even permanent damage.
Lead wires are typically terminated directly to the heater element, with connectors added as needed to suit the system’s interface. In higher reliability applications, protective devices such as thermal fuses, thermostats, or temperature sensors (like thermistors or RTDs) are often integrated to prevent overheating. These components act as both safety mechanisms and control feedback elements for closed-loop thermal regulation.
During system design, engineers should ensure that power delivery paths are properly rated for current load and environmental conditions. Cables must also be routed to prevent strain at the wire-to-heater junction, one of the most common points of failure in the field.
Heat Transfer Considerations
A flexible heater’s performance depends heavily on how effectively heat is transferred to the intended surface or surroundings. The heater must be mounted in a way that promotes uniform contact while minimizing air gaps or insulating barriers that could trap heat.
If only specific regions of the assembly require warming, thermal insulation can be strategically applied to shield adjacent components from unwanted heat exposure. This might involve air gaps, foam barriers, or reflective materials that redirect heat flow to where it’s needed most.
In applications where heat must move quickly away from the heater, such as when coupled to heat sinks, engineers should verify that the design allows for efficient conduction. Factors such as airflow rate, contact pressure, and thermal conductivity of interface materials all influence how the system behaves under load. Testing prototypes under realistic environmental conditions is essential to validate steady-state and transient thermal performance.

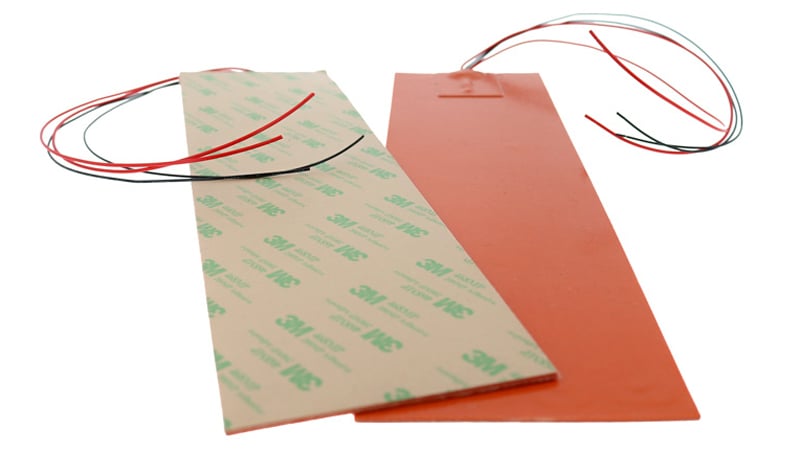

Front and back side view of a silicone rubber flexible heater.
Mounting Techniques
The mounting method is one of the most critical choices in flexible heater integration. The most common solution is a pressure-sensitive adhesive (PSA) backing, which allows for simple peel-and-stick installation. A high-performance PSA ensures full-surface contact, rapid heat transfer, and minimal installation time.
At Epec, we primarily use name-brand adhesives, including industry standards such as 3M467, 3M468, and 3M966. The PSAs are known for their strong bond and consistent thermal performance. Specialty grades are available for applications that require higher temperatures or low outgassing requirements.
In some assemblies, adhesives are unnecessary if there is a mechanical way to locate or fixture the heater in place. For example, flex heaters installed between mechanical layers, inserted into pouches, or compressed between surfaces can function effectively without adhesive. However, designers should remember that removing or delaminating a PSA-mounted heater can damage the element or the mounting surface. If rework or replacement is expected, consider alternative methods like saddle clamps or removable films.
Proper surface preparation is also vital. The mating surface should be clean, smooth, and free from oils or debris before the heater is applied to ensure reliable adhesion and consistent thermal performance across the heater’s active area.
Complete Customization Options
One of the greatest advantages of flexible heaters is complete control over form, function, and integration. Every parameter, from geometry and watt density to materials and electrical connections, can be customized to fit the specific application.
Flexible heaters can be built using polyimide or silicone rubber substrates, depending on temperature range, flexibility, and environmental requirements. Etched foil elements provide high precision and uniform heat distribution for thin designs, while wire-wound elements are preferred for larger systems.

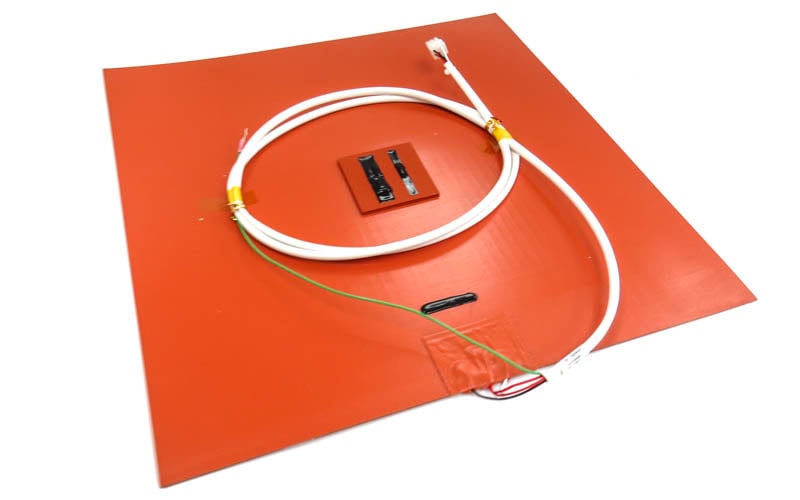

Flexible heater with components.
Additional features such as connectors, thermistors, thermocouples, and insulation layers can be incorporated directly into the design. For systems with strict environmental or safety requirements, such as medical or aerospace equipment, every heater can be designed to meet regulatory standards and tested for electrical insulation, dielectric strength, and long-term reliability.
Working with an experienced flexible heater design team ensures that all these customizations are aligned with system-level performance goals, from thermal efficiency to mechanical integration.
Summary
Integrating a flexible heater into an enclosure or assembly involves more than just choosing the right material; it requires careful coordination between electrical, thermal, and mechanical design. Power delivery, heat transfer efficiency, mounting methods, and customization options all play vital roles in achieving consistent performance and reliability. By addressing each of these considerations early in the design phase, engineers can ensure that their flexible heater operates safely, maintains temperature uniformity, and enhances the overall functionality of the final product.
At Epec, our engineering team works closely with customers to develop flexible heater solutions that seamlessly integrate into their systems, whether the goal is to prevent condensation, maintain battery temperature, or ensure consistent thermal control in complex assemblies.
Key Takeaways
- Flexible heaters integrate easily into enclosures and assemblies because they are thin, customizable, and able to deliver precise, reliable heat across a wide range of environments and applications.
- Power management is foundational to successful heater integration. Proper voltage selection, wiring design, and safety components like thermostats or thermal fuses ensure stable performance and protect the system from overheating.
- Effective heat transfer depends on the heater’s placement and surrounding materials. Designers must direct heat where it is needed and shield adjacent components with insulation, controlled air gaps, or thermal barriers.
- Mounting methods significantly impact reliability. Pressure-sensitive adhesives remain the most common attachment method, but mechanical compression, pouches, or adhesive-free designs may be better for rework or high-temperature environments.
- Complete customization enables heaters to fit virtually any device or enclosure. Options like etched-foil or wire-wound elements, silicone or polyimide substrates, and integrated sensors or connectors allow engineers to tailor heaters to exact system requirements.
