Space is widely recognized as one of the most unforgiving environments for electronics. Extreme temperatures, radiation exposure, vacuum conditions, and mechanical stress during launch all combine to create a unique set of challenges for printed circuit boards.
Designing a rigid printed circuit board (PCB) for these conditions is already complex, but when you introduce rigid-flex technology into the equation, the level of difficulty increases significantly.
Rigid-flex PCBs offer clear advantages for space applications, but they also demand careful decision-making across materials, layout, and manufacturing processes. Engineers must consider everything from thermal stability to mechanical fatigue, while also minimizing potential failure points. When executed properly, rigid-flex can outperform traditional rigid circuit board and cable assemblies, but success depends heavily on understanding the design tradeoffs.
Material Selection
Material selection is one of the most critical steps when designing rigid-flex PCBs for space applications. In many ways, the environment dictates the material choices more than the electrical design itself.
For the rigid sections of the board, high Tg FR-4 is commonly used. The elevated glass transition temperature helps the material maintain structural integrity under thermal cycling, which is especially important in space, where temperature swings can be severe. However, standard FR-4 is not always sufficient. Depending on the mission profile, higher-performance laminates may be required to handle both thermal and mechanical stress.
The flexible portions of the circuit demand even more attention. Polyimide is the preferred material for flex cores and coverlays due to its excellent thermal stability and mechanical durability. It maintains flexibility across a wide temperature range and resists degradation in harsh conditions. Adhesives used in these constructions must also be carefully selected, as they need to withstand both temperature extremes and vacuum conditions without breaking down.
Shielding is another important consideration. In space systems, electromagnetic interference can become a significant issue due to the proximity of sensitive electronics. Shielding films or additional copper layers may be required to protect signal integrity and prevent interference between subsystems.

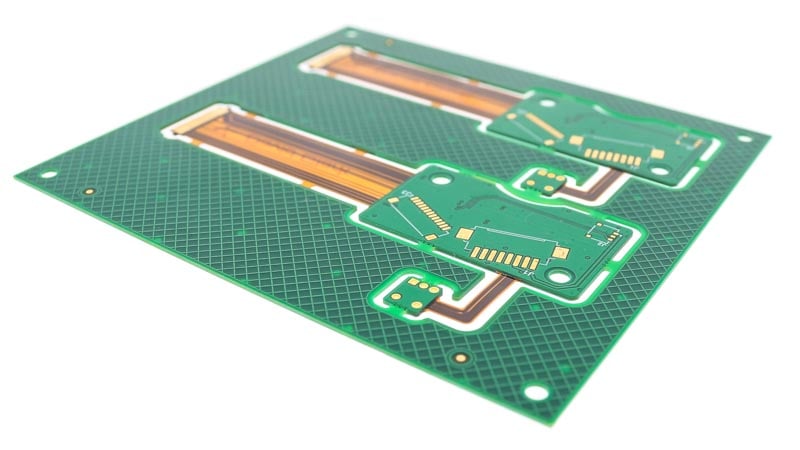

Rigid-flex PCB designed with shielding.
Copper selection plays a role as well, particularly in the flexible regions. For designs that require repeated bending or vibration resistance, rolled annealed copper is preferred over electro-deposited copper. Its grain structure provides better flexibility and fatigue resistance, which can extend the life of the circuit under dynamic conditions.
Finally, engineers should not rely solely on standard material datasheets. Organizations like NASA maintain material databases that evaluate properties such as outgassing, which is a critical factor in vacuum environments. Materials that release gases in space can contaminate sensitive equipment, making proper material validation essential.
Circuit Board Classifications
Unlike rigid PCBs, there is no dedicated IPC classification specifically for space-rated rigid-flex circuits. This creates an additional layer of complexity for engineers who are trying to define requirements.
For rigid circuit boards, IPC-6012 includes a space addendum that outlines performance expectations for flight hardware. However, for flexible and rigid-flex circuits, the highest widely recognized standards are IPC-6013 and IPC-2223 Class 3. These standards define requirements for high-reliability applications, including tighter tolerances, stricter inspection criteria, and enhanced performance expectations.
Because these standards do not fully address the demands of space environments, engineers often need to go beyond them. This typically involves defining additional requirements directly within fabrication drawings and documentation. These may include tighter material specifications, enhanced testing protocols, or specific design constraints tailored to the mission.
In practice, this means that the success of a space-grade rigid-flex PCB design depends not only on following industry standards but also on clearly communicating expectations with the manufacturer.
Failure Points
One of the biggest advantages of rigid-flex technology is its ability to reduce failure points, which is especially valuable in space applications where reliability is critical, and repairs are not an option.
Traditional designs often rely on a combination of rigid PCBs connected by cables or connectors. Each connection introduces a potential point of failure, whether through mechanical wear, poor contact, or environmental stress. In contrast, rigid-flex PCB designs integrate these connections directly into the board, eliminating the need for separate interconnects.
By reducing connectors and cable assemblies, rigid-flex designs create a more streamlined and robust system. This not only improves reliability but can also simplify assembly and reduce overall system complexity.
Weight reduction is another key benefit. In aerospace and space applications, every gram matters. Replacing multiple circuit boards and cables with a single rigid-flex assembly can lead to meaningful weight savings, which directly impacts launch costs and system efficiency.
However, rigid-flex PCB designs are not without their own risks. The transition areas between rigid and flexible sections must be carefully designed to avoid stress concentrations. Improper bend radius calculations, poorly placed vias, or mismatched materials can lead to cracking or delamination over time.
Thermal expansion is another concern. Different materials expand and contract at different rates, and in the extreme temperature swings of space, this can create internal stresses that compromise the integrity of the board. Proper stack-up design and material compatibility are essential to managing these effects.
Why Rigid-Flex Is Often the Better Option
Despite the added complexity, rigid-flex PCBs are often the preferred solution for space applications. Their ability to combine electrical performance with mechanical flexibility allows for more compact and reliable designs.
By eliminating connectors, reducing weight, and improving durability, rigid-flex circuit boards offer clear advantages over traditional approaches. They also provide greater design freedom, allowing engineers to route circuits in ways that would not be possible with rigid boards alone.
The key is understanding when and how to use rigid-flex effectively. Not every design requires it, but in applications where reliability, weight, and space are critical, it can provide a significant performance advantage.
Summary
Space can be difficult to design for, given strict requirements and harsh environments. While designing, it’s best to consider all specifications, requirements of designs, material choices, and failure points. All of these can be difficult to determine together, but during design, Epec can help to reduce stress and determine what can be important for your designs.
Key Takeaways
- Rigid-flex PCBs are well-suited for space applications because they reduce connectors and interconnects, which are common points of failure in traditional designs.
- Material selection is critical, with high Tg materials for rigid sections and polyimide-based constructions for flexible areas helping withstand extreme temperatures and harsh conditions.
- There is no dedicated space standard for rigid-flex, so engineers must rely on IPC Class 3 guidelines and clearly define additional requirements in fabrication documentation.
- Proper design of transition areas, bend regions, and material compatibility is essential to prevent failures caused by thermal stress, fatigue, or delamination.
- When designed correctly, rigid-flex boards can reduce weight, improve reliability, and simplify assemblies, making them a strong choice for demanding aerospace and space environments.
