When a printed circuit board (PCB) overheats in the field, the root cause often traces back to one simple question that was never fully answered during layout: how much current is really flowing through each trace? Trace sizing and copper weight decisions may seem routine, but small assumptions at this stage can lead to voltage drop, excessive heat, and long-term reliability problems.
Getting current calculations right early keeps designs stable, manufacturable, and ready for real-world operating conditions.
Copper Weight Basics
Copper weight is specified in oz/ft² and corresponds to thickness. A common mistake or missing information is in relation to the outer layer copper weight. Stating the finished desired weight (after plating) or the base copper weight (before plating) eliminates the need for clarification by production engineering.
When specifying copper, keep it simple and follow basic guidelines by standard weights. 0.5, 1.0, 2.0, 3.0 ounces are the common standards, with up to many more ounces as required. Your PCB supplier needs to know copper weight per layer, each layer can be designated, or a simple call out of 1oz all inner layers, or all layers minimum, allows manufacturing to proceed. If calling out copper by layer, keep in mind that inner layer cores, balanced copper from side to side, or symmetrical is best for ease of processing. During the design phase, a balance of copper remaining on each side of the core will aid in final flatness.
| Copper Weight | Thickness (approx.) |
|---|---|
| 0.5 oz | 17 µm (0.7 mil) |
| 1 oz | 35 µm (1.4 mil) |
| 2 oz | 70 µm (2.8 mil) |
| 3 oz | 105 µm (4.2 mil) |
When using higher copper, typically 2oz or more, it is important to know the design rules for manufacturing and what is needed.
Some products that may require higher copper are:
- High current (>2–3 A)
- Power electronics
- Motor drives, SMPS, LED boards
- Reduced voltage drop requirements
- Improved thermal spreading
Example: Two oz finished copper usually means 1oz base + plating. Inner layers do not have plating added; it is a 2-oz copper weight start/finish.
Higher copper weight matters for technologies such as impedance, current, and etch compensation. Higher copper weights are sometimes essential, but the trade-offs are higher cost, larger minimum trace and space rules, more difficult to process through production, and thickness challenges for impedance controls and dielectrics.
Trace Width vs. Current
During design, trace width vs. current (IPC-2152) is determined; many times, production is not considered, leading to manufacturing challenges. As copper gets thicker, etching becomes less vertical.
Let me explain this process a little more, for it is critical to understand what exactly happens, so adjustments can be considered at layout and routing. When the image is applied to the PCB after several steps, the cores move to the etching process. Etchant chemicals attack the copper that is not protected by film or plating to remove what is not needed, leaving behind the desired circuitry, ground, or power planes.

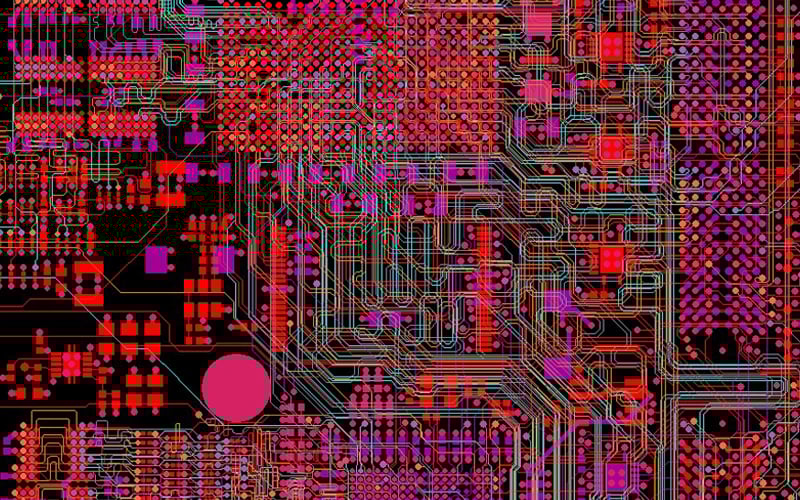

CAD example of PCB circuitry.
The nature of the chemicals is to attack the copper from the surface; however, at the same time, the chemicals also attack sideways. The effect of the process is to narrow circuits, pads, and all copper features. Because we know this is going to happen, we compensate for the image to allow for loss. The compensation depends on the limits, the spacing from copper to copper, and the ounce of copper. When the proper considerations are in place, this is an easy fix for production. For example, 1oz inner layers with a mix of circuits and pads using a trace and space of 0.007/0.007 mils allows for a 0.001 mil add, making copper larger, decreasing spacing, but still allowing for processing. 0.008 mil trace/0.006 mil space. When the trace and space do not allow compensation, such as 0.004/0.004 mils, it becomes more difficult to process, and the loss can be greater than needed for impedance or fine pitch devices, which are difficult to apply.

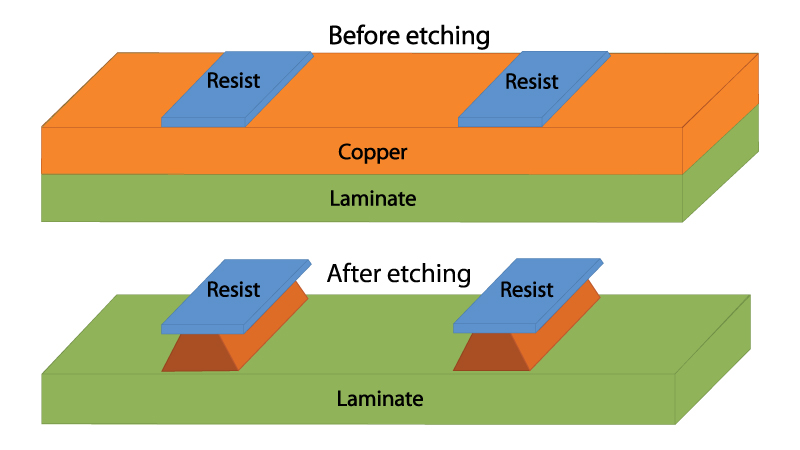

Diagram depicting copper loss after the etching process.
| Standard Copper | Recommended Minimum Trace/Space |
|---|---|
| 1 oz | 5/5 mil (common) |
| 2 oz | 6–8 / 6–8 mil |
| 3 oz | 8–10 / 8–10 mil |
| 4 oz | 10–12+ mil |
However, manufacturing varies, equipment and processing may not always hold true to these minimums; consult with your supplier regarding their capabilities. When spacing allows, increase the space in relation to traces. Four mil trace/5 mil space changes the ease of processing greatly. It is as simple as more space, less waste.
High-Current Routing Techniques
At Epec, we have some experience (73-plus years in the production of PCBs). We have high-current routing techniques for design, layout, and routing. When producing data, consider the entire surface for layout and routing vs. copper weight and manufacturing. Knowing capabilities and having conversations during design benefits all manufacturing.
There are some items to keep in mind. When you need to run a bundle of traces together more than 4 or 5, then allow for added space. When routing traces in tight spacing, avoid neckdowns when possible; use a tear drop pad to circuit interface in lieu of increasing pad size. Copper pouring for filler and flatness when not many traces are used. Using solid copper, waffle copper, or cross-hatch can cause processing issues with flaking film and redeposition. When you remove copper and the layers aren’t balanced it will allow movement in the materials during processing and an increase in bow/twist.
Some additional design tips are items such as avoiding right angles or sharp corners, adding a radius or arc; it is the nature of the process to round and smooth away corners. When possible, use components that adhere to the copper trace/space rules. As copper thickness increases, it is more difficult to apply the mask to tight areas and have it adhere. Mask webs in fine pitch devices that are in danger of shorting can also be problematic for mask adhesion, so consider your options based on copper weight.
Watch thermal relief areas on internal layers. Some of the time, they are necessary depending on the current passing through; however, for high current, reduce or eliminate thermal reliefs, know the proper outer diameter, inner diameter, and spoke width needed, or use solid connections on power nets.
Heavy Copper PCB Design
Signal integrity and impedance change with the copper; more copper is not always the answer when we talk about integrity. Higher copper thicknesses lower trace impedance, which in turn requires recalculation of controlled impedance traces. When production calculates impedance values with stack-up suggestions, dielectric trace widths may need to be adjusted.
For high-speed signals, keep copper weight consistent, use stack-up impedance calculations from your PCB supplier, and have them provide what will work best for your project. Avoid mixing heavy power copper with fine RF traces on the same layer; over-etching is problematic on unbalanced areas.

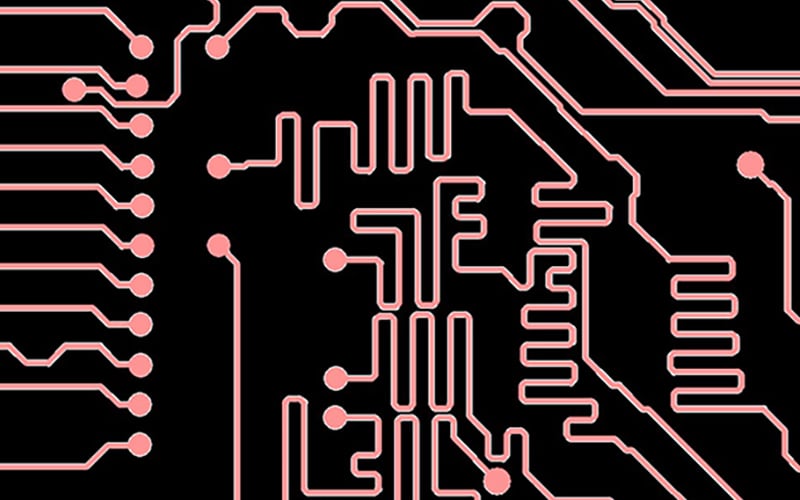

Example of PCB traces after etch factor is applied.
Have your supplier perform a DFM; they will consider copper weight and confirm the design and capabilities to support copper weights as is. All the details add up to success. Verify min trace/space for chosen copper, specify finished copper vs. base copper. Check via aspect ratio limits. Properly define thermals for proper current and thermals.
Remember the common mistakes, assuming copper weight alone solves heating, and forgetting that internal layers need wider traces. Ignoring connector and via current limits, using default thermal reliefs on power nets, and not recalculating impedance after changing copper weight.
Summary
Successful PCB design with the appropriate copper weight and circuitry geometry requires early consideration of electrical, thermal, and manufacturing constraints as a unified system rather than isolated choices. By clearly specifying copper requirements, following current-carrying guidelines, designing for manufacturability, and coordinating closely with your fabricator, you can avoid costly revisions and performance issues.
Thoughtful layout decisions, combined with realistic expectations of what copper weight can and cannot solve, lead to more reliable, efficient, and scalable designs.
Key Takeaways
- Clearly specify copper weight for every layer and call out whether the value is base or finished copper to prevent manufacturing delays and misinterpretation.
- Higher copper weight increases current capacity and thermal spreading, but it also raises cost, increases minimum trace and spacing requirements, and complicates impedance control.
- Etching narrows copper features during fabrication, so trace width and spacing must include compensation to maintain manufacturable geometries and meet IPC-2152 current guidelines.
- High-current routing requires thoughtful layout practices such as wider spacing, avoiding neckdowns, balancing copper distribution, and minimizing thermal reliefs on power nets.
- Copper weight changes affect impedance and signal integrity, making early collaboration and DFM review with your PCB manufacturer essential to prevent overheating, redesigns, and field failures.
