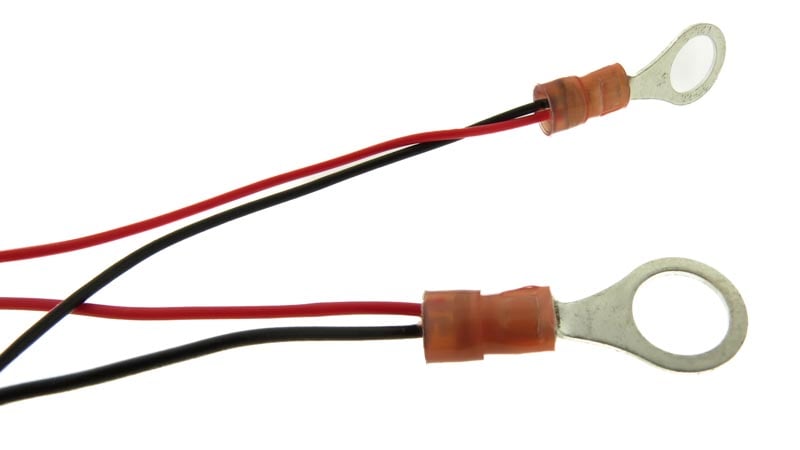

--- title: Ensuring Cable Assemblies Meet IPC/WHMA-A-620 and Beyond description: Learn how IPC/WHMA-A-620 standards help improve cable assembly quality, workmanship, testing, and realistic wire harness tolerances for reliable builds. image: https://blog.epectec.com/hubfs/blog/cable-assembly-with-ring-terminals.jpg --- [![Epec Engineered Technologies](https://www.epectec.com/images/logo.png "Epec Engineered Technologies")](https://www.epectec.com/) [![Epec Engineered Technologies](https://www.epectec.com/images/logo.png "Epec Engineered Technologies")](https://www.epectec.com/) - [Articles](https://www.epectec.com/articles/) - [Blog](https://blog.epectec.com/) - [Webinars](https://www.epectec.com/webinar/) - [Videos](https://www.epectec.com/videos/) - [Case Studies](https://www.epectec.com/case-studies/) - [News & Events](https://www.epectec.com/news/) - [Customer Portal](https://system.netsuite.com/c.406760/site/NSlogin.html) - [About](https://www.epectec.com/about/overview/) - Back - [Company Overview](https://www.epectec.com/about/overview/) - [Our History](https://www.epectec.com/about/our-history/) - [Culture](https://www.epectec.com/about/culture/) - [Industries Served](https://www.epectec.com/about/industry/) - [Acquisitions](https://www.epectec.com/about/acquisitions.html) - [Operations](https://www.epectec.com/operations/) - Back - [Operational Excellence](https://www.epectec.com/operations/) - [Quality Philosophy](https://www.epectec.com/operations/quality-philosophy.html) - [Quality Assurance Process](https://www.epectec.com/operations/quality-assurance-process.html) - [Global Operations](https://www.epectec.com/operations/global-operations.html) - [Logistics & Supply Chain](https://www.epectec.com/operations/logistics-and-supply-chain.html) - [Inventory Stocking](https://www.epectec.com/operations/inventory-stocking.html) - [Approvals](https://www.epectec.com/operations/approvals.html) - [ITAR Registered](https://www.epectec.com/operations/itar-registered.html) - [Engineering](https://www.epectec.com/engineering/overview/) - Back - [Engineering Overview](https://www.epectec.com/engineering/overview/) - [Engineering Support](https://www.epectec.com/engineering/support/) - [Design Services](https://www.epectec.com/engineering/design-services/) - [EpecDFx™](https://www.epectec.com/engineering/epecdfx/) - [Free DFM File Check](https://www.epectec.com/engineering/free-dfm.html) - [PCB Impedance Calculator](https://www.epectec.com/engineering/impedance-calculator.html) - [Products](https://www.epectec.com/products/) - Back - [Overview](https://www.epectec.com/products/) - [Battery Packs](https://www.epectec.com/batteries/) - [Flex & Rigid-Flex PCBS](https://www.epectec.com/flex/) - [Cable Assemblies](https://www.epectec.com/cable-assemblies/) - [Printed Circuit Boards](https://www.epectec.com/pcb/) - [CNC Machining](https://www.epectec.com/cnc-machining/) - [User Interfaces](https://www.epectec.com/user-interfaces/) - [Flexible Heaters](https://www.epectec.com/flexible-heaters/) - [EC Fans & Motors](https://www.epectec.com/fans-motors/) - [Design Guides](https://www.epectec.com/guides/) - [Design Guides](https://www.epectec.com/guides/) - Back - Resources - Back - [Articles](https://www.epectec.com/articles/) - [Blog](https://blog.epectec.com/) - [Webinars](https://www.epectec.com/webinar/) - [Videos](https://www.epectec.com/videos/) - [Case Studies](https://www.epectec.com/case-studies/) - [News & Events](https://www.epectec.com/news/) - [Customer Portal](https://system.netsuite.com/c.406760/site/NSlogin.html) - [Contact Us](https://www.epectec.com/contact/) - Back - [Contact Information](https://www.epectec.com/contact/) - [Our Sales Team](https://www.epectec.com/contact/our-sales-team.html) - [Office Locations](https://www.epectec.com/contact/office-locations.html) - [Career Opportunities](https://www.epectec.com/contact/career-opportunities.html) - [InstantPCB*Quote*™](https://www.epectec.com/instantpcbquote/) - Back - [Overview](https://www.epectec.com/instantpcbquote/) - [Login](https://secure.epecpcb.com/epec/) - [Register](https://secure.epecpcb.com/epec/index2.jsp) - [Home](https://www.epectec.com/) - [Blog](https://blog.epectec.com/) - Ensuring Cable Assemblies Meet IPC/WHMA-A-620 and Beyond Share This Page: [LinkedIn](https://blog.epectec.com/#linkedin) [X](https://blog.epectec.com/#x) [Facebook](https://blog.epectec.com/#facebook) [Email](https://blog.epectec.com/#email) # Ensuring Cable Assemblies Meet IPC/WHMA-A-620 and Beyond [![Steven J Goodman](https://blog.epectec.com/hubfs/Blog-Authors/steve-goodman.jpg "Steven J Goodman")](https://blog.epectec.com/author/steven-j-goodman) Written by [Steven J Goodman](https://blog.epectec.com/author/steven-j-goodman) Posted on May 27, 2026 at 8:59 AM ![Steven J Goodman](https://blog.epectec.com/hubfs/Blog-Authors/steve-goodman.jpg "Steven J Goodman") - [Tweet](https://twitter.com/share) When it comes to [cable assemblies](https://www.epectec.com/cable-assemblies/) and [wire harnesses](https://www.epectec.com/cable-assemblies/wire-harnesses.html), consistency is everything. A design might look perfect on paper, but without clear workmanship standards and acceptance criteria, the final product can vary from build to build. That is exactly why IPC/WHMA-A-620 exists. Whether you are designing, manufacturing, or inspecting cable assemblies, understanding this standard is not optional if reliability matters. It provides a common language across engineering, production, and quality teams, ensuring everyone is aligned on what “good” actually looks like. [![Free Ebook Download: Custom Wire Harness Design Considerations](https://no-cache.hubspot.com/cta/default/707152/064fab69-3df9-4652-9127-4da0e84ce748.png)](https://cta-redirect.hubspot.com/cta/redirect/707152/064fab69-3df9-4652-9127-4da0e84ce748) ## What is IPC/WHMA-A-620? IPC/WHMA-A-620, often shortened to IPC-620, is the industry standard for the acceptability of cable and wire harness assemblies. It was developed by IPC in collaboration with the Wiring Harness Manufacturers Association (WHMA) to define clear requirements for materials, methods, and workmanship. At its core, IPC-620 establishes pass and fail criteria for cable assemblies. It is widely used across industries, including aerospace, [medical](https://www.epectec.com/cable-assemblies/medical-device-cables.html), industrial equipment, and consumer electronics. Many customers require compliance with IPC-620 as part of their supplier qualification process. ## What Does IPC-620 Cover? IPC-620 is comprehensive, covering both technical requirements and visual standards. It includes: - Workmanship standards that define acceptable assembly practices - Pass and fail criteria for inspection - Length tolerances for wires and harnesses - Clear photographic examples of acceptable and unacceptable conditions One of the most valuable aspects of IPC-620 is the use of visual references. These images remove ambiguity and help ensure that inspectors and assemblers interpret requirements consistently. ## Why is IPC-620 Important? IPC-620 brings structure and consistency to an otherwise highly variable manufacturing process. Without it, every manufacturer might define quality differently, leading to mismatched expectations and unreliable products. From an engineering standpoint, IPC-620 improves reliability by ensuring that cable assemblies and wire harnesses meet proven workmanship standards. From a business standpoint, it also prevents over-engineering. Designers sometimes apply unnecessarily tight tolerances or unrealistic requirements, which can drive up cost, reduce yield, and create avoidable production issues. By following IPC-620, teams can strike the right balance between quality and manufacturability. ## Key Sections Every Cable Designer Should Understand While the full standard is extensive, several sections are especially important for designers. - **Section 4.0 – Soldered Terminations:** This section defines how soldered connections should be formed. It covers wetting, solder coverage, insulation clearance, and acceptable fillet shapes. Poor solder joints are a common failure point, so understanding these requirements helps ensure reliable electrical connections. - **Section 8.0 – Splicing:** Splices are often necessary in harness design, but they must be executed correctly. This section defines acceptable splice types, mechanical strength requirements, and insulation methods. It also outlines when splices are allowed and how they should be protected. - **Section 11.0 – Length Tolerances:** This is one of the most overlooked sections. IPC-620 provides standardized tolerances based on cable length. These tolerances are practical and aligned with real-world manufacturing capabilities. - **Section 19.0 – Testing:** This section outlines electrical and mechanical testing requirements. It includes continuity testing, insulation resistance, and other validation methods to ensure the assembly performs as intended. ## Key Sections Every Assembler and Inspector Should Know For those building and inspecting assemblies, different sections take priority. - **Section 3.2 – Strand Damage:** This defines how much conductor strand damage is acceptable. Excessive damage can reduce current-carrying capacity and mechanical strength, so limits are clearly defined. - **Section 3.5 – Insulation Requirements:** This section outlines acceptable levels of insulation damage, stripping quality, and exposure. It ensures that insulation integrity is maintained without being overly restrictive. - **Section 5.0 – Crimped Terminations:** Crimp quality is critical in cable assemblies. This section defines proper crimp geometry, pull strength expectations, and inspection criteria. A poor crimp can lead to intermittent failures that are difficult to diagnose. - **Section 10.0 – Workmanship and Cosmetic Criteria:** This section covers overall assembly quality, including overmolding, potting, and general appearance. While cosmetic issues may not always impact function, they can indicate process inconsistencies. ![Ring terminals assembled per IPC-620 workmanship standards](https://blog.epectec.com/hs-fs/hubfs/blog/cable-assembly-with-ring-terminals.jpg?width=800&height=450&name=cable-assembly-with-ring-terminals.jpg) *Ring terminals assembled per IPC-620 workmanship standards.* ## Important Takeaway for Every Cable Harness If there is one concept from IPC-620 that every designer should apply, it is this: be realistic about length tolerances. One of the most common mistakes is leaving default title block tolerances on drawings. These tolerances are typically intended for machined or molded components, not flexible and extruded wire. Applying the wrong tolerances to cable lengths can create unnecessary challenges. ### Overly tight tolerances can: - Increase scrap rates - Drive up manufacturing costs - Cause delays due to rework or non-conformances IPC-620 provides practical length tolerances that reflect real manufacturing conditions. Following these guidelines helps ensure that designs are both buildable and cost-effective. ### Typical IPC-620 Wire Length Tolerances | Cable Length | Recommended Tolerance | | --- | --- | | ≤1 ft | +1 in - 0 in | | \>1 ft to 5 ft | +2 in - 0 in | | \>5 ft to 10 ft | +4 in - 0 in | | \>10 ft to 25 ft | +6 in - 0 in | | \>25 ft | +5% - 0% | These values provide a solid baseline. Some manufacturers may achieve tighter tolerances, but designing to IPC standards ensures consistency and avoids unnecessary risk. ## Going Beyond IPC-620 While IPC-620 sets the foundation, many applications require additional controls. Medical, aerospace, and high-reliability systems often include supplemental requirements such as enhanced testing, traceability, or stricter workmanship criteria. The key is to build on IPC-620, not replace it. It provides a proven baseline that can be tailored to meet specific application needs. ## Summary IPC/WHMA-A-620 is more than just a standard. It is a framework for building reliable, consistent cable assemblies. By understanding their requirements and applying them correctly, engineers and manufacturers can reduce defects, control costs, and improve overall product performance. Whether you are designing a simple harness or a complex multi-branch assembly, aligning with IPC-620 ensures that quality is built into every step of the process. --- ## Key Takeaways - **IPC/WHMA-A-620 defines industry-wide standards** for cable assembly quality, including workmanship, inspection criteria, and testing. - **Designers should focus on critical sections** like soldering, splicing, length tolerances, and testing to ensure manufacturable and reliable designs. - **Assemblers and inspectors** must understand requirements for strand damage, insulation integrity, crimp quality, and overall workmanship. - **Realistic length tolerances** based on IPC guidelines are essential to avoid unnecessary cost, delays, and production issues. - **IPC-620 provides** a strong foundation, but high-reliability applications may require additional controls beyond the standard. - [Tweet](https://twitter.com/share) Topics: [Cable Assemblies](https://blog.epectec.com/topic/cable-assemblies) --- [Next](https://blog.epectec.com/30-60-90-day-battery-maintenance-preventing-costly-pack-failures) | [All posts](https://blog.epectec.com/all) | [Previous](https://blog.epectec.com/hidden-costs-and-challenges-of-offshore-battery-pack-manufacturing-q-and-a) [![New call-to-action](https://no-cache.hubspot.com/cta/default/707152/aa920eaf-6806-4ac9-a6e3-1ac5ce9edf5e.png)](https://cta-redirect.hubspot.com/cta/redirect/707152/aa920eaf-6806-4ac9-a6e3-1ac5ce9edf5e) ## Leave a Comment --- ## Related Posts --- ### Recent Posts --- ### Posts by Topic - [Printed Circuit Boards (160)](https://blog.epectec.com/topic/printed-circuit-boards) - [Product Design (137)](https://blog.epectec.com/topic/product-design) - [Battery Packs (121)](https://blog.epectec.com/topic/battery-packs) - [Cable Assemblies (102)](https://blog.epectec.com/topic/cable-assemblies) - [Flex & Rigid-Flex PCB's (95)](https://blog.epectec.com/topic/flex-rigid-flex-pcbs) - [Electronics Industry (61)](https://blog.epectec.com/topic/electronics-industry) - [User Interfaces (55)](https://blog.epectec.com/topic/user-interfaces) - [Quality Solutions (33)](https://blog.epectec.com/topic/quality-solutions) - [Flexible Heaters (30)](https://blog.epectec.com/topic/flexible-heaters) - [Events, Training, and Support (9)](https://blog.epectec.com/topic/events-training-and-support) - [RF Products (7)](https://blog.epectec.com/topic/rf-products) - [CNC Machining (3)](https://blog.epectec.com/topic/cnc-machining) - [Fans & Motors (1)](https://blog.epectec.com/topic/fans-motors) See All --- --- ### Need Help with A Project? [![Request Design Support](https://blog.epectec.com/hs-fs/hubfs/blog/design-support-ad.jpg?width=350&name=design-support-ad.jpg)](https://info.epectec.com/request-design-support) Our team of engineers are here to help you with all your product needs. [Request Design Support](https://cta-redirect.hubspot.com/cta/redirect/707152/0d3cd574-22cb-48a2-867e-1a7ffba28403) Manufacturing That Eliminates Risk & Improves Reliability [sales@epectec.com](mailto:sales@epectec.com?subject=Website%20Information%20Request) [(888) 995-5171](tel:888-995-5171) ##### Support & Contact Our knowledgeable staff has many years of experience in the industry. We welcome the opportunity to put our skills to work for you! Please contact us with any questions or requests. - [176 Samuel Barnet Blvd, New Bedford, MA](https://maps.app.goo.gl/Q6JVMv3eQgw29fNY8) - [sales@epectec.com](mailto:sales@epectec.com?subject=Website%20Information%20Request) - [(888) 995-5171](tel:888-995-5171) --- ###### Certifications [![UL Certified Manufacturer](https://www.epectec.com/images/certified-ul.png "UL Certified Manufacturer")](http://www.ul.com/) [![ITAR Registered Manufacturer](https://www.epectec.com/images/certified-itar.png "ITAR Registered Manufacturer")](https://www.epectec.com/operations/itar-registered.html) [![RoHS Compliant Manufacturer](https://www.epectec.com/images/certified-rohs-compliant.png "RoHS Compliant Manufacturer")](https://www.epectec.com/pcb/rohs-compliant.html) [![ISO9001 Certified Manufacturer](https://www.epectec.com/images/certified-iso9001.png "ISO9001 Certified Manufacturer")](https://www.epectec.com/operations/approvals.html) [![ISO27001 Certified Manufacturer](https://www.epectec.com/images/certified-iso27001.png "ISO27001 Certified Manufacturer")](https://www.epectec.com/operations/approvals.html) --- - ##### About - [Company Overview](https://www.epectec.com/about/overview/) - [Our History](https://www.epectec.com/about/our-history/) - [Culture](https://www.epectec.com/about/culture/) - [Industries Served](https://www.epectec.com/about/industry/) - [Acquisitions](https://www.epectec.com/about/acquisitions.html) - ##### Operations - [Operational Excellence](https://www.epectec.com/operations/) - [Quality Philosophy](https://www.epectec.com/operations/quality-philosophy.html) - [Quality Assurance Process](https://www.epectec.com/operations/quality-assurance-process.html) - [Global Operations](https://www.epectec.com/operations/global-operations.html) - [Logistics & Supply Chain](https://www.epectec.com/operations/logistics-and-supply-chain.html) - [Inventory Stocking](https://www.epectec.com/operations/inventory-stocking.html) - [Approvals](https://www.epectec.com/operations/approvals.html) - [ITAR Registered](https://www.epectec.com/operations/itar-registered.html) - ##### Engineering - [Engineering Overview](https://www.epectec.com/engineering/overview/) - [Engineering Support](https://www.epectec.com/engineering/support/) - [Design Services](https://www.epectec.com/engineering/design-services/) - [EpecDFx™](https://www.epectec.com/engineering/epecdfx/) - [Free DFM File Check](https://www.epectec.com/engineering/free-dfm.html) - [PCB Impedance Calculator](https://www.epectec.com/engineering/impedance-calculator.html) - ##### Products - [Overview](https://www.epectec.com/products/) - [Battery Packs](https://www.epectec.com/batteries/) - [Flex & Rigid-Flex PCBS](https://www.epectec.com/flex/) - [Cable Assemblies](https://www.epectec.com/cable-assemblies/) - [Printed Circuit Boards](https://www.epectec.com/pcb/) - [CNC Machining](https://www.epectec.com/cnc-machining/) - [User Interfaces](https://www.epectec.com/user-interfaces/) - [Flexible Heaters](https://www.epectec.com/flexible-heaters/) - [EC Fans & Motors](https://www.epectec.com/fans-motors/) ##### Social Community Join our Social Community and keep in touch with all our latest technology investments, current news, upcoming events, and promotions. --- © 2026 Copyright Epec, LLC. All Rights Reserved. [Tariff Resources](https://www.epectec.com/tariff-resources/)|[Privacy Policy](https://www.epectec.com/privacy-policy/)|[Term & Conditions](https://www.epectec.com/terms/site.html)|[Sitemap](https://www.epectec.com/sitemap.html) ```json { "@context" : "https://schema.org", "@type" : "BlogPosting", "author" : { "@type" : "Person", "name" : "Steven J Goodman", "url" : "https://blog.epectec.com/author/steven-j-goodman" }, "dateModified" : "2026-06-01T18:08:10.017Z", "datePublished" : "2026-05-27T12:59:01.000Z", "headline" : "Ensuring Cable Assemblies Meet IPC/WHMA-A-620 and Beyond", "image" : [ "https://blog.epectec.com/hubfs/blog/cable-assembly-with-ring-terminals.jpg" ], "mainEntityOfPage" : { "@id" : "https://blog.epectec.com/ensuring-cable-assemblies-meet-ipc-whma-a-620-and-beyond", "@type" : "WebPage" }, "publisher" : { "@type" : "Organization", "logo" : { "@type" : "ImageObject", "url" : "https://blog.epectec.com/hubfs/image/logo.png" }, "name" : "Epec Engineered Technologies" } } ```
