In today’s high-density electronics, designers are constantly balancing miniaturization with long-term reliability. One technology that makes compact layouts possible is the use of blind and buried vias, specialized interconnections that don’t completely pass through the board like traditional plated-through-holes.
While these advanced via structures enable higher routing density and improved signal performance in complex multilayer PCBs, they also introduce unique manufacturing challenges and potential reliability risks. Understanding how blind and buried vias affect thermal stress, structural integrity, and long-term performance is critical for engineers seeking to build robust, failure-resistant printed circuit boards.
Let’s dive in and discuss each type.
Blind Vias
Blind vias are a type of via used in multilayer printed circuit boards to connect an outer layer to one or more inner layers, without going all the way through the board. Blind vias starting on either outer layer connect and terminate on an internal layer. Because it doesn’t pass completely through the board, it’s “blind” from the opposite side.
Blind vias are primarily used in high-density interconnect (HDI) designs where space is limited. As we push technology limits or expansions, the increase of routing density, the blinds save valuable board space, reduce layer congestion, improve signal routing flexibility, and enable smaller form factors such as smartphones, wearables, and medical devices.

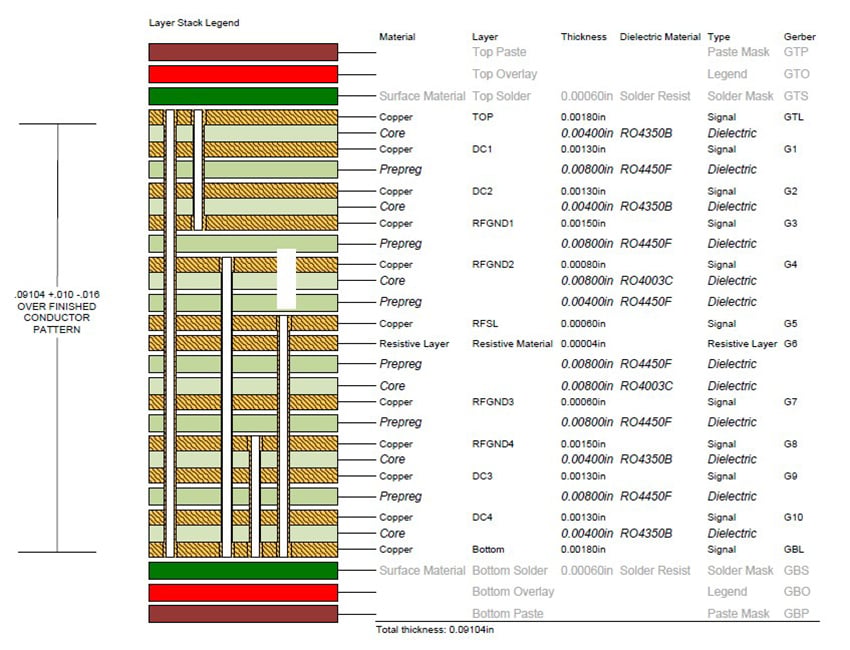

As shown in the stack-up, there are 4 sets of blind vias and 1 through-hole.
Buried Vias
Buried vias are internal interconnections used in multilayer printed circuit boards that connect two or more inner layers, without reaching the outer surface of the board. Unlike a traditional through-hole via (which runs from top to bottom) or a blind via (which connects an outer layer to an inner layer), a buried via exists entirely within the internal layers of the PCB.
Once the circuit board is fully laminated, the via is no longer visible from the outside, hence the term buried. Buried vias are commonly used in high-layer-count and high-density designs where routing space is limited. They help PCB designers by increasing routing efficiency inside the board. They free up outer layers for component placement and signal routing, reduce via congestion on surface layers, improve overall layout flexibility, and optimize layer stack-ups in complex designs. They’re especially valuable in HDI boards, networking equipment, aerospace electronics, and compact consumer devices.
Processing of Each Via Type
Blind processing vias are typically created using laser drilling (common for microvias). Engineering of the blind vias involves controlled-depth mechanical drilling to a specific depth, plating of the holes, filling and planarizing, and a sequential lamination process(s).
Buried vias require a sequential lamination process: inner layers are drilled and plated first. Those layers are laminated together to form a subassembly. Additional layers are added and laminated in subsequent steps, creating a stack of processed layers. Because of this, the multi-stage fabrication process for both blind and buried vias increases manufacturing time, complexity, and cost compared to standard through vias exponentially.

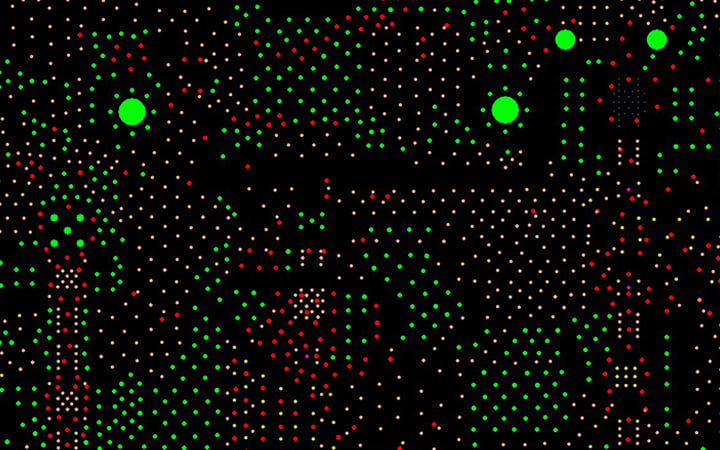

A zoomed-in partial of a drill program in Gerber format. Each color represents a blind or buried via set.
Are They Reliable?
While blind vias offer design advantages, they also introduce potential reliability challenges. Because the steps are multilevel thermal stress sensitive, expansion and contraction during temperature cycling can cause barrel cracking or separation. Plating thickness controls of thin copper barrel plating increase failure risk. Stacked microvia fatigue, excessive heat cycles can cause vias to fail under repeated thermal cycling. Manufacturing tolerances require tighter process controls to avoid voids and misalignment.
When properly fabricated, buried vias can be highly reliable. However, they introduce specific design and manufacturing challenges as well. Like the blind via, thermal expansion mismatch between laminated sections can create internal stress. Registration accuracy is critical during sequential lamination. Plating quality must be carefully controlled to avoid voids or weak barrel walls, and finally, inspection difficulty increases since buried vias are not externally visible.

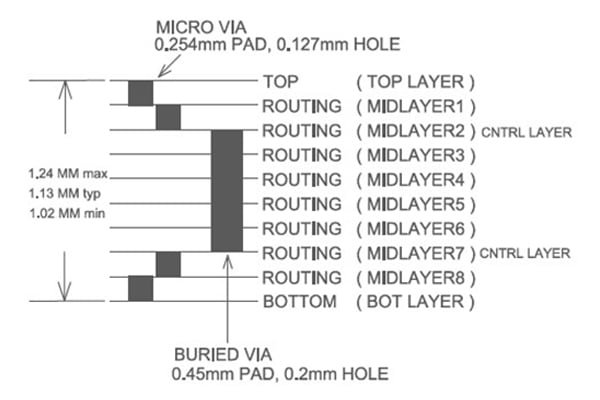

In this stack-up, there are 2 sets of blind vias and 3 sets of buried vias.
Back Drilling
Back drilling (also called controlled depth drilling) is a PCB fabrication technique used to remove the unused portion of a plated through-hole via, often referred to as the via stub. This seldom-used process is some of the time a 3rd option at a lesser cost. In high-speed PCB designs, a standard through-hole via may connect only a few layers but still extend through the entire board. The unused section acts as a signal stub, which can cause signal reflections, impedance interruptions, increased insertion loss, and degraded performance at high frequencies.
Back drilling removes that unused barrel section from the opposite side of the board, significantly reducing these signal integrity issues. After the board is plated, a larger drill bit is used from one side to carefully drill down to just past the target layer, removing the excess via barrel without damaging the active connection. This process does come with its own reliability issues. When properly controlled, back drilling can improve high-speed performance without negatively impacting reliability. However, precise depth control is critical; misalignment can weaken the via structure, and it still must make an extra pass-through drilling, adding cost.
Back drilling is commonly used in high-speed backplanes, telecom equipment, and advanced computing systems where signal integrity is critical.

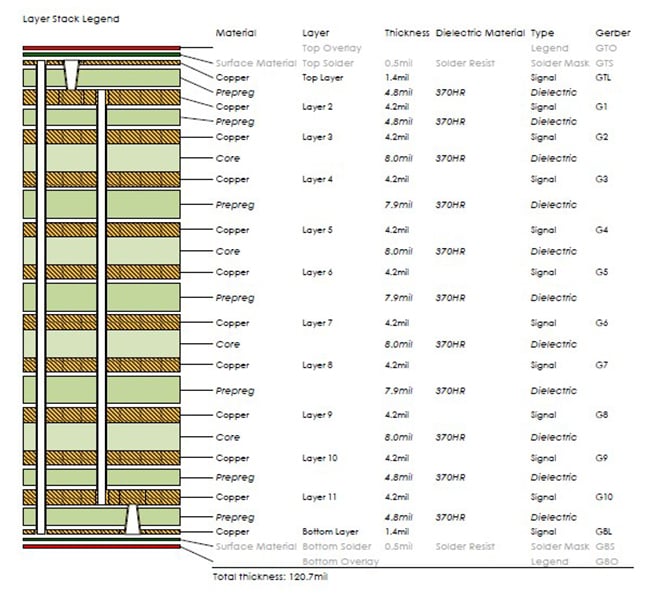

This stack-up is 12 layers with 1 through hole, 2 blinds, and 1 buried.
Summary
Ultimately, the decision to use blind vias, buried vias, or back drilling comes down to balancing risk against performance and long-term reliability. These advanced techniques introduce added manufacturing complexity, tighter process tolerances, and higher costs, factors that can increase the risk of defects if design rules and fabrication controls aren’t carefully managed. However, when applied appropriately in high-density or high-speed designs, they can significantly improve routing efficiency, signal integrity, and overall system performance.
In many modern applications, especially compact or high-frequency electronics, the benefits outweigh the risks, provided the design is optimized for manufacturability, and the PCB fabricator has proven expertise. In short, they’re not always necessary, but when performance demands it, they’re often well worth the investment.
Choosing the right PCB manufacturer is just as critical as the design decisions themselves. Advanced features like blind and buried vias, microvias, and back drilling demand precise process control, high-quality materials, and proven expertise in sequential lamination and controlled-depth drilling. Not all fabricators have the same capabilities or experience with complex stack-ups, and even small process variations can impact long-term reliability. Partnering with a manufacturer that specializes in HDI construction, maintains tight quality controls, and understands the reliability requirements of your application ensures that the benefits of these advanced via technologies are fully realized without introducing unnecessary risk.
Key Takeaways
- Blind and buried vias enable higher routing density and smaller form factors, but they introduce added manufacturing complexity that must be carefully managed to maintain reliability.
- Thermal stress is a primary risk factor, expansion and contraction during temperature cycling can lead to cracking, separation, or fatigue in via structures if not properly designed and fabricated.
- Sequential lamination and precision drilling processes increase cost and require tight process control, making fabrication expertise just as important as the design itself.
- Back drilling can improve high-speed signal integrity by removing via stubs, but it adds another processing step and requires precise depth control to avoid weakening the structure.
- The success of advanced via technologies ultimately depends on collaboration with an experienced PCB manufacturer that can manage tolerances, plating quality, and inspection challenges in complex multilayer builds.
