Devices powered by lithium-based battery cells rely on a battery management system (BMS) to help ensure safe and reliable operation. A properly designed BMS continuously monitors battery conditions, helps protect cells from damaging operating conditions, and provides visibility into battery health and performance.
When issues such as excessive temperatures or charging fluctuations occur, internal protection controls can communicate battery status to connected systems and help prevent more serious failures. Without a properly designed BMS, battery packs may be exposed to overcharging, over-discharging, capacity loss, or cell damage.
Because every battery-powered device has unique electrical, mechanical, and environmental requirements, the BMS must be designed to match the battery pack's specifications, chemistry, architecture, and performance objectives.
What is a Battery Management System?
A battery management system plays a central role in the safe and efficient operation of rechargeable battery packs. During charging and discharging, the BMS continuously monitors key performance parameters using real-time sensor data.
Epec's BMS monitors:
- Voltage
- Current
- Temperature
- State of charge (SoC)
This monitoring helps maintain battery performance while supporting safe operating conditions.
Unlike manufacturers that depend on third-party BMS platforms, Epec has developed its own battery management technology, allowing direct control over system design and functionality. This approach provides greater flexibility for customization based on application-specific requirements.

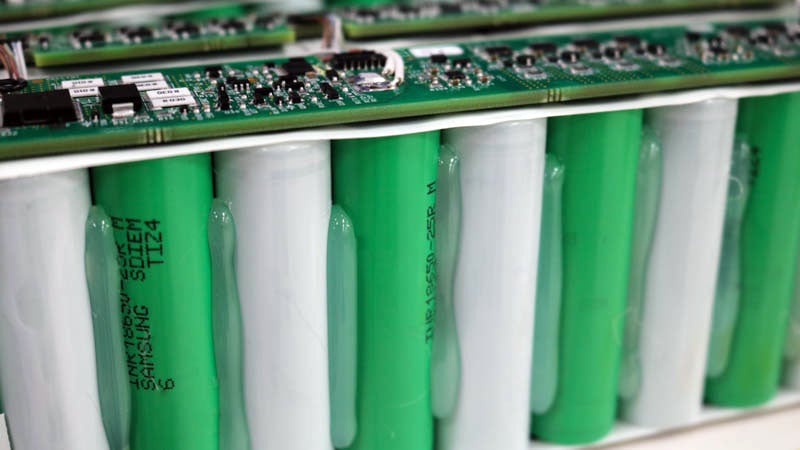

Custom battery pack with battery management system.
The system incorporates:
- Precise battery gauging
- Active cell balancing
- Built-in protection circuits
- Intelligent system control firmware
Additional safety functions include temperature-based charging restrictions that prevent charging outside safe operating conditions, helping support both battery longevity and user safety.
How BMS Design Affects Battery Pack Performance
A BMS combines hardware and firmware elements that work together to monitor and control battery operation.
Core components may include:
- Microcontrollers
- Temperature sensors
- Communication interfaces
- Peripherals
- Power electronics
- Firmware
These elements continuously evaluate battery condition by tracking state of health (SoH) and state of charge (SoC). They also support cell balancing, enable communication with external devices, receive operational commands, and provide performance data.
A properly designed BMS can improve overall battery efficiency and performance by:
- Regulating internal temperatures
- Preventing overcharging
- Preventing undercharging
- Preventing over-discharging
- Maintaining balanced cells during charging cycles
Matching the BMS to Battery Cell Chemistry
Battery pack requirements vary depending on the selected cell chemistry and the operating needs of the end device.
Voltage and current requirements directly influence BMS design. Different battery chemistries may operate at different voltage levels and require different charging parameters. As a result, the BMS must be designed around the specific characteristics of the cells being used.
These chemistry-driven requirements can affect:
- Charging parameters
- Monitoring requirements
- Protection thresholds
- Overall control strategy
Selecting the appropriate battery chemistry and aligning the BMS to those characteristics is a key factor in achieving efficient battery operation.
Battery Pack Architecture Considerations
Battery pack architecture has a direct impact on how the BMS is designed and implemented.
Factors such as total battery capacity and cell configuration influence available power, charging behavior, monitoring requirements, and overall system operation. For example, cells may be organized in series and parallel configurations, while monitoring functions may be deployed through centralized or distributed architectures.
Several BMS architectures are available depending on application requirements.
Centralized BMS
A centralized BMS manages all battery cells from a single control location. This approach consolidates monitoring and control functions into one system.
Distributed BMS
A distributed BMS uses multiple BMS units throughout the battery pack. This configuration can provide additional monitoring coverage and failsafe protection.
Modular BMS
A modular BMS consists of interconnected monitoring and control units. This architecture can be adapted to battery packs that require monitoring across multiple sections.
Cell Balancing Methods
Cell balancing helps maintain more consistent performance across battery cells.
The source identifies two balancing approaches:
- Active cell balancing systems that redistribute excess charge between higher-voltage and lower-voltage batteries.
- Passive cell balancing systems that equalize charge among cells during charging and discharging cycles.
Safety and Protection Requirements
One of the primary responsibilities of a BMS is protecting battery cells during charging and discharging.
Battery-powered devices may be exposed to a range of operating conditions, including:
- Shock
- Vibration
- Power fluctuations
- Humidity
- Elevated temperatures
Understanding the expected operating environment helps determine the protection features required within both the battery pack and the BMS.
Design considerations may include:
- Protection circuitry
- Sensor integration
- Battery pack enclosures
The BMS continuously gathers operating data from voltage, current, and temperature sensors. Using parameters established for the selected battery chemistry, the system monitors battery conditions to help maintain proper operating ranges, identify potential performance issues, and support accurate power delivery.
These monitoring functions also enable the BMS to deploy control actions intended to regulate internal battery temperatures.
Thermal Management Requirements
Thermal management is a critical part of BMS design because batteries operate under varying environmental and load conditions.
Power requirements, ambient temperature, and operating environment all influence thermal design decisions. In applications where external heating or cooling systems are not available, the BMS may be designed to control heating and cooling functions to maintain appropriate internal temperatures.
Operating in Cold Conditions
Extremely cold environments require special consideration. To help prevent battery damage and capacity loss, the BMS may be designed to control systems that:
- Draw heat from external sources
- Utilize heat generated by the primary battery pack
In some applications, thermal-hydraulic systems may be used to pump coolants into the battery enclosure.
Managing Excess Heat
Battery packs may also be exposed to heat generated by external environmental conditions, internal electronic components, or the battery cells themselves.
If temperatures increase beyond acceptable limits, thermal runaway can occur. To address this risk, the BMS may incorporate safety measures such as:
- Shutdown controls
- Valve-control functions designed to disperse heat
These measures help manage excessive temperatures and support safer battery operation.
Cost and Commercial Considerations
The cost of a BMS depends largely on the functionality required by the application. Costs can increase as additional features are integrated, including:
- Power supply functions
- Firmware capabilities
- Sensor systems
- Protection circuits
- Microcontroller units
- Communication interfaces
Off-the-Shelf BMS Solutions
Applications with established operating requirements or relatively simple performance demands may be served by off-the-shelf BMS products.
These systems can help reduce development timelines and support faster time-to-market objectives. However, they may offer fewer monitoring, control, and customization options than more advanced solutions.
Some manufacturers may attempt to add functionality to an off-the-shelf BMS platform. In these situations, available space within the device can become a limiting factor when integrating additional features.
Custom BMS Solutions
Custom BMS designs provide greater flexibility when application requirements demand specific safety, protection, monitoring, or performance features.
Custom development allows designers to select components and functions based on the needs of the battery pack and end device. While custom solutions generally require a greater investment, they offer more control over system capabilities and design decisions.
Selecting the Right BMS for a Battery Pack
The effectiveness of a battery management system depends on how well it aligns with the battery pack and its intended application.
Key considerations include:
- Battery chemistry requirements
- Voltage and current demands
- Battery pack architecture
- Thermal management needs
- Environmental operating conditions
- Safety and protection requirements
- Budget constraints
A properly designed BMS helps support battery longevity, safe operation, and reliable performance by continuously monitoring battery conditions and responding to operating changes throughout the charge and discharge cycle.
Summary
Battery pack performance can be optimized with a BMS to improve the longevity of the cells while offering the best power options for the device. Evaluating the power needs of the device, the features that are desired, and your budget can help to narrow down the design choices to select the components that will provide a cost-effective BMS unit.
Key Takeaways
- BMS ensures battery safety and efficiency: A well-designed battery management system (BMS) monitors key parameters such as voltage, current, temperature, and state of charge to prevent issues like overcharging, over-discharging, and overheating, ensuring optimal battery performance.
- Different BMS architectures suit different applications: Centralized, distributed, and modular BMS configurations offer varying levels of monitoring and control, while active and passive cell balancing methods help maintain consistent charge across battery cells.
- Thermal management is crucial for battery longevity: The BMS must regulate internal temperatures, preventing thermal runaway by using cooling, heating, or external thermal management systems, particularly in extreme environmental conditions.
- Safety features protect against environmental stressors: A BMS incorporates protection circuitry, sensors, and enclosure design to safeguard battery packs against vibrations, shocks, power fluctuations, and exposure to heat or humidity.
- Cost considerations impact BMS design: Off-the-shelf BMS units can reduce costs and speed up production but may lack advanced features, whereas custom BMS solutions provide greater flexibility and safety but require a higher investment.
