Pre-baking polyimide-based flex PCBs immediately prior to assembly is required to prevent moisture-driven delamination during reflow. Polyimide materials naturally absorb moisture, which expands into steam under high temperatures and separates layers. Removing this moisture just before assembly is the only reliable way to avoid failures.
Pre-baking is an established requirement for polyimide-based flex and rigid-flex circuits, defined in IPC-2223 sec. 5.3.5 and IPC-FA-251 sec. 3.2.1.1.2, and reinforced by material supplier guidelines. This step is not optional when preparing flex circuits for the elevated temperatures of assembly processes.
The requirement applies to all designs using polyimide materials, including those with coverlay and stiffeners. Pre-baking is specifically performed immediately before assembly, not during fabrication, to address moisture absorbed during handling, storage, and transport.
Moisture Absorption in Polyimide Materials
Polyimide is the primary material used throughout flex PCB construction, including:
- Flex cores
- Coverlay layers
- Many stiffener constructions
A key property of polyimide is that it is hygroscopic. At 20°C and 50% relative humidity, it can absorb approximately 2% of its weight in moisture. This level can increase in higher temperature and humidity environments.

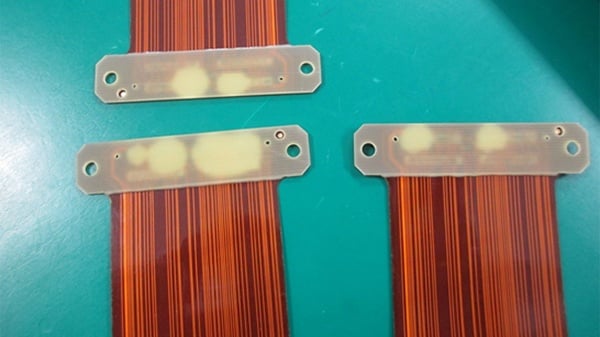

Delamination between FR4 stiffener and flex circuit.
This moisture absorption does not affect electrical performance and does not degrade mechanical characteristics; however, it becomes critical during assembly.
How Moisture Causes Delamination
During assembly, flex PCBs are exposed to high temperatures, especially during reflow processes. Under these conditions:
- Absorbed moisture rapidly converts to steam
- The volume expansion from liquid to gas creates growing internal pressure
- This pressure will immediately or eventually separate bonded interfaces within the circuit
Common failure modes include:
- Coverlay delamination
- Layer-to-layer separation
- Delamination between flex circuits and stiffeners (including FR4 stiffeners)
This risk has increased with higher reflow temperatures associated with RoHS-compliant processes.
Flex PCB Pre-Baking Process
Pre-baking removes absorbed moisture prior to assembly and is the only effective way to prevent delamination.
Typical process parameters:
- Bake temperature = 120°C
- Bake duration = 2–10 hours
Key process considerations:
- Bake time varies based on circuit design
- Higher layer counts increase required duration
- Stiffeners increase required duration
- Overall construction complexity affects the bake time
- Parts must be positioned with sufficient airflow around each piece
- Uniform heating is required to ensure complete moisture removal
Timing and Handling After Pre-Bake
Pre-baking is effective only when done immediately before the assembly process.
- Assemblies should begin as soon as parts cool to a workable temperature
- Delays allow moisture to reabsorb into the polyimide
- Extended gaps between assembly cycles may require a second pre-bake
For builds requiring multiple assembly operations, moisture control must be maintained between cycles.
Why Pre-Baking During Fabrication Is Not Effective
Pre-baking earlier in the manufacturing process does not eliminate the need for pre-baking before assembly. Manufacturers will attempt to impede moisture absorption, but over time the packaging may let in moisture.
- Vacuum packaging with desiccants does not prevent moisture retention
- Storage in dry boxes does not ensure moisture-free material
- Environmental exposure during shipping and handling allows reabsorption
Because polyimide continuously absorbs moisture from ambient conditions, the only reliable timing for pre-bake is immediately before assembly.
Summary
Pre-baking flex PCB parts at the circuit board manufacturing stage are not a viable or practical option. Flexible circuit boards shipped vacuum-packed with a desiccant will still contain moisture and require a pre-bake. Pre-baking the parts well in advance of assembly and then storing them in a “dry box” is also not a recommended practice for avoiding technical issues in your flex orders.
Key Takeaways
- Pre-baking is mandated by IPC standards and material guidelines for polyimide-based flex circuits.
- Polyimide absorbs moisture naturally, regardless of supplier or manufacturing method.
- Moisture converts to steam during reflow, causing internal pressure and delamination.
- Pre-baking at 120°C for 2–10 hours removes moisture and prevents failure.
- The process must occur immediately prior to assembly to remain effective.
