Testing a lithium-ion battery pack before assembly focuses on validating the protection circuitry and fuel gauge prior to installing the cells. Pre-assembly testing enables full functional verification, programming, and calibration in a controlled environment. This approach simplifies troubleshooting, reduces failure risk, and improves overall product quality.
Why Battery Pack Testing Happens Before Assembly
Lithium-ion battery packs require protection circuitry to safely isolate the cells from external connections. This circuitry may range from simple charge and discharge FET-based designs with voltage and current detection to more advanced systems that include fuel gauging and additional protection managed by firmware.
Because these components are mounted on a circuit board, they must be verified for functionality. If a fuel gauge is included, it must also be programmed and potentially calibrated. Performing this work before cell installation ensures access to the full functionality of the system without the constraints introduced by an assembled pack.
Protection Circuitry and Fuel Gauge Validation
The protection circuit and battery fuel gauge form the core of the pack’s control electronics. These systems must be thoroughly tested to confirm that they respond correctly to operating conditions.
Key pre-assembly requirements include:
- Verifying voltage and current detection functionality
- Testing charge and discharge control through FETs
- Programming and calibrating the fuel gauge (if applicable)
- Confirming overall circuit behavior meets functional expectations
Completing this validation step ensures that the electronics are fully operational before integration with the lithium-ion cells.
Testing Prior to Cell Installation
Pre-assembly testing before installing the cells allows full access to the circuitry and removes dependence on the state of charge of the battery. Once cells are installed, testing becomes more limited and failures are often more difficult to diagnose or repair.

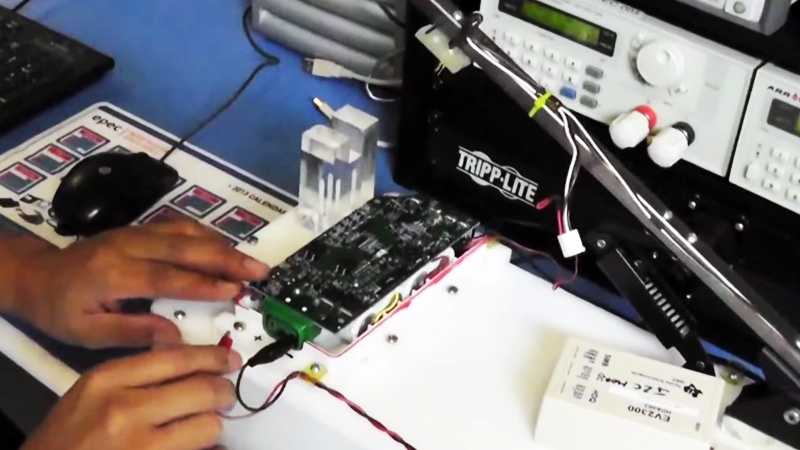

Battery Pack Testing Before Assembly
Pre-assembly testing enables:
- Complete functional verification of circuitry
- Programming and calibration without constraints
- Immediate identification and isolation of failures
If an issue is detected at this stage, the circuit board can be easily removed, repaired, and retested.
Test Fixtures and Simulation Methods
Pre-assembly testing is typically performed using a dedicated fixture that simulates real operating conditions. A power supply and electronic load are configured to replicate:
- The battery cell pack
- The battery charger
- The system load
This setup enables controlled testing of all circuit functions. Each function can be assigned pass/fail criteria, allowing technicians to quickly determine whether the circuitry is operating correctly and to pinpoint any issues.

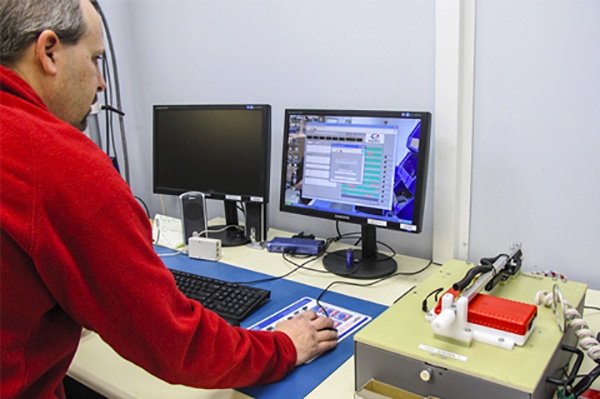

Custom Test Equipment for Battery Packs After Assembly
Troubleshooting Before and After Assembly
Advantages of Pre-Assembly Troubleshooting
Troubleshooting is most effective before the cell pack is installed because the circuit board remains accessible and unencumbered.
Benefits include:
- Easier access to components for repair
- Ability to work on an unpowered board
- Faster identification of root causes using test data
At this stage, repairs can be performed without the complications introduced later in the assembly process.
Challenges After Cell Installation
Once the lithium-ion cells are installed, troubleshooting becomes significantly more difficult. The assembly process often includes materials such as:
- Silicone
- Heat shrink
- Fish paper
- Other insulation layers
These materials make disassembly and repair challenging or impractical. As a result, resolving issues after assembly may be time-consuming or not feasible.
Post-Assembly Functional Testing
After the cells are installed, a more limited test is performed to confirm that the battery pack is fully functional and ready for shipment. This step verifies overall operation rather than individual circuit functions.
At some point in the manufacturing process, the final product is tested against its defined specifications to confirm that it meets functional requirements.
Manufacturing Tradeoffs and Quality Impact
Pre-assembly testing introduces additional time, equipment, and fixture costs. However, these upfront investments deliver measurable long-term benefits:
- More thorough testing of protection circuitry and fuel gauge
- Simplified troubleshooting and repair processes
- Reduced likelihood of field failures
- Improved overall battery pack quality
This approach supports the delivery of reliable lithium-ion battery packs while minimizing downstream costs and performance risks.
Summary
All parties must account for the added cost and time resulting from testing the printed circuit board assembly before assembling the battery pack. However, it pays dividends when the long-term cost savings, thorough testing, troubleshooting, and ease of repair result in a high-quality product with a lower instance of failure in the field.
Key Takeaways
- Protection circuitry is essential: Every lithium-ion pack requires built-in protection, ranging from simple FET-based voltage/current detectors to advanced fuel gauging and secondary safety systems.
- Early testing is best: Testing the circuitry before cell installation allows full functional verification, programming, and calibration without limitations from cell state of charge.
- Fixtures simulate real conditions: Using a power supply and electronic load to mimic cells, chargers, and loads provides a controlled environment for thorough pre-assembly testing.
- Repairs are easier pre-cell install: Troubleshooting unpowered boards is simpler and avoids complications from heat shrink, silicone, or insulation materials used later in pack assembly.
- Higher upfront cost, long-term savings: While early-stage testing adds time and equipment expense, it results in higher quality packs, fewer field failures, and reduced long-term costs.
