Modern electronic devices increasingly require more stored energy without a corresponding increase in battery size or weight. That requirement makes energy density an important consideration in custom battery pack design, particularly for portable products and other applications where available space and weight are limited.
Higher energy density can support longer operating times while allowing the battery and overall device to remain relatively compact. However, energy density cannot be considered independently. Battery chemistry, cell materials, safety, enclosure design, charging and discharging protection, and shipping requirements all affect how a high-density battery pack can be designed and used.
What Is Energy Density in a Battery?
Energy density describes the amount of energy a battery can store relative to its size or weight. Battery chemistry, electrode materials, electrolyte composition, and other cell characteristics influence how much stored energy is available to the device.

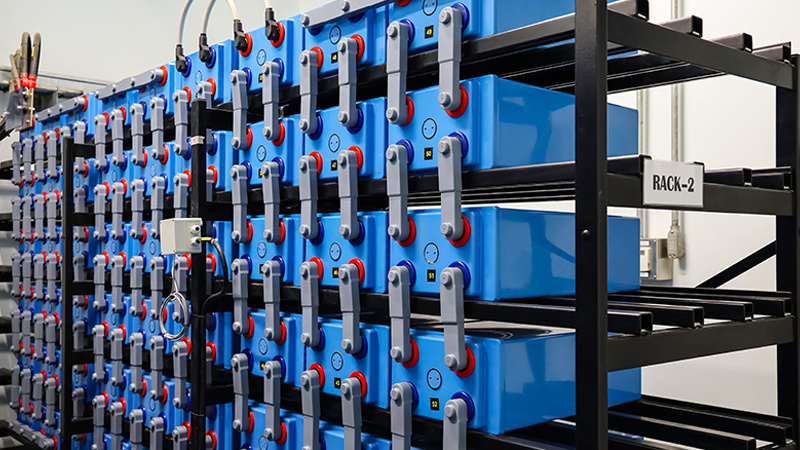

High-density energy battery pack-ups for use when loss of power.
Energy density should not be confused with power density. Energy density describes stored energy, while power density addresses how much output power a battery can provide. This distinction is important when evaluating a battery because an application that requires longer runtime may have different cell requirements than one requiring high power output.
Here are the following specific energy-density ranges by chemistry:
- Lead-acid: 30-50 Wh/kg
- NiCd: 45-80 Wh/kg
- NiMH: 60-120 Wh/k
- Lithium-ion: 90-195 Wh/kg, depending on materials such as cobalt, phosphate, or manganese
Historically, increasing the amount of available stored energy could require additional cells or a larger, heavier battery. While that approach increases storage capacity, it can create significant design problems when a product has limited internal space or strict weight requirements.
High-density battery designs address this challenge by increasing the amount of stored energy available relative to battery weight. For products where space, portability, and operating time are important, this can allow designers to pursue longer runtime without relying only on a larger or heavier battery pack.
High-density lithium-ion batteries may reach 150-220 Wh/kg.
What Determines a Lithium-Ion Battery's Energy Density?
Lithium-ion cells can provide high energy density, but lithium-ion is not a single, uniform chemistry. Different material combinations produce different energy density, stability, cost, and application characteristics.
In general, lithium-ion batteries have a graphite or carbon anode, an aluminum-backed cathode, and an electrolyte solution containing lithium salts. Changes to cathode materials, anode materials, and electrolyte composition affect cell energy density.
Several lithium-ion chemistries illustrate these differences.
Lithium Titanate (LTO)
Lithium titanate (LTO) has an energy density of 50-80 Wh/kg and is described as having the most stable chemistry among the lithium-ion types discussed. It also describes LTO as expensive to manufacture and typically reserved for commercial applications.
Lithium Cobalt Oxide (LCO)
Lithium cobalt oxide (LCO) is listed at 150-190 Wh/kg. Its cathode contains cobalt oxide and is typically found in smartphones, laptops, and electric vehicles. Cobalt scarcity and material instability are considerations when designing battery packs and enclosures.
Lithium Nickel Manganese Cobalt Oxide (NMC)
Lithium nickel manganese cobalt oxide (NMC) combines nickel and manganese with cobalt. These additions improve battery stability while maintaining a high energy density of 150-220 Wh/kg.
The differences among these chemistries demonstrate why energy density alone does not determine the appropriate cell choice. Increasing energy density can introduce other material, stability, cost, packaging, and safety considerations that must be addressed at the battery-pack level.
Higher Energy Density Requires Careful Safety Design
High temperatures and thermal runaway are significant concerns with lithium-ion cells. These conditions can create a risk of fire or explosion.
As more energy is stored within the battery, protection during charging and discharging becomes an important part of the custom battery pack design. There are several layers of protection used for high-density battery packs.
These include:
- Limiting the amount of active, unstable materials
- Incorporating electronic protection circuits (PTC) and other safety mechanisms
- Monitoring battery charging and discharging states
- Using a circuit interrupt device to open the circuit path when high temperatures or pressures may occur due to high charge cycles
- Using a control circuit to cut off current to prevent over-discharging
- Designing the battery enclosure with cooling and venting capabilities to control temperatures and allow gas buildup caused by cell pressure to escape
These measures illustrate an important design tradeoff. Higher energy density can help address size, weight, and runtime requirements, but the pack must also account for the behavior of the selected cell chemistry and the hazards associated with charging, discharging, temperature, and internal pressure.
Lithium Battery Shipping Requirements
All lithium batteries are categorized as hazardous materials for shipping and must be shipped according to applicable hazardous goods codes and restrictions from the U.S. Department of Transportation (DOT), International Maritime Organization (IMO), and International Civil Aviation Organization (ICAO).
For a custom battery program, shipping requirements therefore need to be considered alongside the electrical and mechanical design of the pack. The battery's chemistry and configuration affect more than performance inside the finished device. They can also affect how the battery is handled and transported.
Where High-Density Battery Technology Is Heading
Lithium-ion cells currently provide the high energy densities required by many applications, but further development is focused on changing cell materials and construction to increase energy storage capabilities.
There are two potential approaches:
1. Solid-State Batteries
Solid-state batteries replace the liquid electrolyte with a solid-state material. Solid-state batteries could provide energy densities 2.5 times greater than lithium-ion batteries.
2. Lithium-Sulfur Cells
Lithium-sulfur is another potential high-density chemistry. Lithium-sulfur cells offer energy-density potential 4 times greater than lithium-ion, while sulfur is more readily available than the cobalt used in some lithium-ion cells.
Both technologies illustrate the direction of high-density battery development: increasing the amount of energy that can be stored while reconsidering the materials and construction used in today's lithium-ion cells.
Designing Around Energy Density
High energy density is particularly valuable when a product requires longer operating time but cannot accommodate a substantially larger or heavier battery pack. However, energy density is only one part of the design decision.
Cell chemistry and materials influence achievable energy density as well as stability, cost, enclosure requirements, and safety considerations. A custom battery pack must also incorporate the protection needed to manage charging, discharging, temperature, pressure, and the behavior of the selected cells.
Lithium-ion chemistries demonstrate these tradeoffs clearly. Energy densities range from 50-80 Wh/kg for LTO to 150-220 Wh/kg for NMC, with meaningful differences in stability, materials, cost, and applications.
As solid-state and lithium-sulfur technologies develop, they may provide substantially greater energy-storage potential. For current designs, however, selecting a battery requires balancing energy density against the complete electrical, mechanical, safety, and transportation requirements of the application.
Summary
The frontier of high-density energy storage is continually advancing, driven by the ever-increasing demands of modern technology. Custom battery design, particularly in lithium-ion cells, has achieved remarkable feats in providing high energy density without the trade-offs of increased size and weight.
As we look to the future, innovations such as solid-state batteries and lithium-sulfur cells promise even greater energy storage capabilities, potentially revolutionizing the landscape of portable power. These advancements not only enhance the performance and longevity of devices but also open new possibilities for innovation across various industries, ensuring that our technological progress remains both robust and sustainable.
Key Takeaways
- High-Density Energy Storage Maximizes Power Without Added Size or Weight: Modern custom battery designs, especially lithium-ion, deliver significantly higher energy densities (up to 220 Wh/kg) compared to traditional chemistries, enabling longer device runtimes without increasing battery size or weight.
- Material Selection Drives Energy Density and Stability: Variations in cathode, anode, and electrolyte materials, like NMC and LCO, allow manufacturers to balance energy density with safety and stability. Higher density often comes with increased volatility, requiring careful material choices.
- Advanced Safety Features Are Critical in High-Density Batteries: To mitigate risks like thermal runaway, custom battery packs incorporate protection circuits, current interrupt devices, and vented enclosures, ensuring safe charging, discharging, and operation under demanding conditions.
- Regulatory Compliance and Shipping Restrictions Are Essential: High-density lithium batteries are classified as hazardous materials, requiring strict adherence to DOT, IMO, and ICAO shipping regulations, which impact logistics, handling, and overall battery pack design considerations.
- Future Innovations Aim to Exceed Lithium-Ion Capabilities: Emerging technologies like solid-state and lithium-sulfur batteries promise to dramatically increase energy density, up to 4x higher, while improving safety and material availability, paving the way for next-gen portable power solutions.
