The telecommunication industry is the foundation of global connectivity, enabling seamless communication through wired and wireless systems. While cutting-edge wireless technology like 5G and satellite TV often steals the spotlight, wired telecommunication remains indispensable for its reliability and performance.
Behind the scenes, custom cable assemblies play a vital role in making these systems efficient and durable. These assemblies ensure that the infrastructure supporting telecommunication is robust, adaptable, and capable of meeting modern demands.
What Is Telecommunication?
Telecommunication refers to the transmission of information over distances using electromagnetic principles. The telecommunication industry powers everything from voice calls and internet access to satellite communication and streaming services. While wireless technologies like Wi-Fi and cellular networks attract industry attention, the backbone of the industry often lies in wired systems.
The wired telecommunication ecosystem depends on carefully engineered components, including cables, connectors, and related technologies, to bring ultra-high bandwidth data to your fingertips. This includes even the most basic items such as RJ45 connectors, cat5e ethernet cable, and switch matrices. Custom cable assemblies are a cornerstone of this infrastructure, delivering low-cost solutions built with highly reliable industry-standard materials.
Wired Telecommunication: The Foundation of Connectivity
Wired telecommunication transmits signals through physical cables, connecting homes, offices, and industrial facilities with one another. Ethernet cables, connectors, and custom assemblies make these connections possible, providing high-speed, low-latency communication essential for modern operations. Most importantly the telecommunication industry demands low points as this is a competitive and mature market.
Among the most commonly used wired solutions is the Cat5e cable, known for its ability to support data transfer speeds of up to 1 Gbps. These cables are prevalent in home and office networks, providing reliable and cost-effective connections at speeds in excess of 100 MHz.
To ensure safety and compliance, cable jackets come in with a variety of industry standards. One of the most common jacket types is a plenum-rated or CMR-style bulk cable. Communications Multipurpose Riser (CMR) jackets are designed for vertical installations, such as between building floors, offering fire-resistant properties that limit the spread of flames. Meanwhile, plenum-rated jackets are crafted for spaces like HVAC systems, where air circulation occurs. These jackets release minimal smoke and toxins in the event of a fire, making them critical for safety and regulatory adherence.
Connectors: Linking the Networks
Cables require termination in many forms. Among the most common are the RJ family of telecommunication connectors. The RJ11 connector, a common feature in landline telephones, facilitates analog voice communication. The other most common telecommunications connector is the RJ45 connector, which dominates Ethernet networking, enabling high-speed data transmission for internet and LAN setups.
For specialized applications, RJ50 connectors offer a 10-pin configuration, delivering enhanced functionality and performance compared to their counterparts. Each connector type plays a critical role in meeting the specific needs of various telecommunication protocols.
These RJ family of connectors can also feature shielding, such as foil wraps or braided bulk cable to protect against electromagnetic interference. Also referred to as EMI, electromagnetic interference can degrade signal quality or worse cause failures in adjacent systems and equipment.
Overmolds: Enhancing Cable Durability
Custom telecommunications cables often include overmolds, which are protective materials molded around the connector or cable ends. Overmolds not only extend the life of cables but also improve usability and functionality.
It is important to distinguish between an overmold and a separate molded boot that is slid over the cable jacket of a household ethernet cord. Overmolding is a complex process requiring specialty equipment, and the latter is a temporary but effective means of strain-relieving the connector.
One key benefit of overmolds is strain relief, which reduces the stress placed on cable connections during regular use. This feature prevents premature wear and tear, particularly in environments where cables are frequently handled. Overmolds also enhance ruggedization, adding a layer of protection against harsh environmental conditions, including moisture, dust, and mechanical impact.
In addition to protection, overmolds can improve ergonomics by serving as a handle, making cables easier to grip and manipulate. They can also incorporate dust caps, which keep connectors clean and free from debris in industrial or outdoor settings. Despite their many advantages, overmolds remain an affordable and straightforward addition to custom cable assemblies, offering significant value for telecommunications applications.

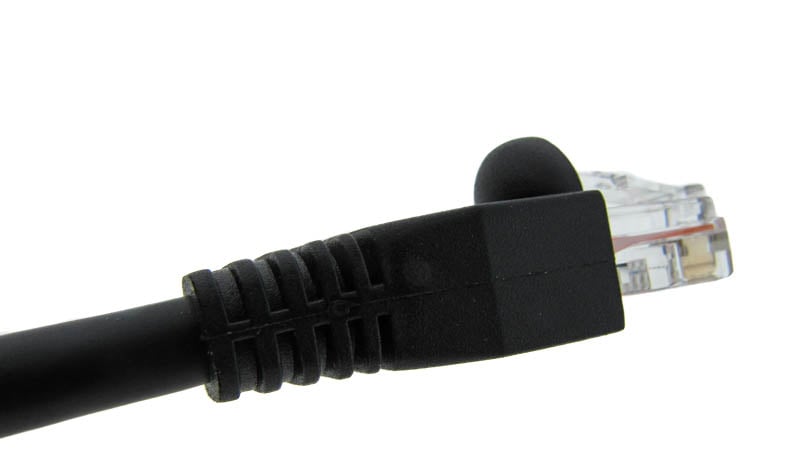

Cable assembly with overmolded RJ45 connector.
Custom Cable Assemblies: Wire Options
With several wire options available, it’s important to understand what requirements apply to each custom cable assembly before selecting a wire type. If the application is within a riser, or within HVAC ducting, then the industry requirements of CMR and plenum-rated wire could apply. This is important because these specialty cable jackets are typically only available in the United States or have expensive price tags with limited availability.
But specialty CMR and plenum-rated wire jackets are not the wire options used within the telecommunications industry, other readily available wires can be used and still comply with all safety requirements. If the wire is being used to connect a casino gaming device to an Ethernet hub, a standard Cat5e cable with a VW-1 flame rating may be sufficient.
Furthermore, if the harness is nestled within the chassis of a switch matrix, a UL2464-style wire could be the best choice. With so many wire options available it’s always best to review the system requirements with a product expect before finalizing the design.
One of the key challenges in creating custom cable assemblies is material compatibility and availability. For example, one must make sure that a plenum-rated jacket is readily available and in stock before adding this particular bulk-cable specification to a purchase requisition. Similarly, engineers must match the shielding methodology of a connector with the correct shielded cable type as this mismatch in shielding designs can significantly impact performance. There needs to be a focused review of the available wire options that are in stock, not just options that appear in a bulk wire catalog or data sheet. Some specialty telecommunications bulk wire is extremely difficult to source in small order quantities.
Why Custom Cable Assemblies Matter For Telecommunication
As telecommunication evolves to meet the demands of a connected world, the infrastructure supporting it must also advance. Custom cable assemblies are at the heart of this evolution, providing the adaptability and reliability required to keep systems running smoothly.
Their importance is particularly evident in applications where generic cables fall short. For example, a standard Ethernet cable might suffice for a home network but could fail in an industrial environment with high EMI exposure or physical wear and tear. Custom cable assemblies address these challenges by offering tailored solutions that meet the unique demands of each application. Moreover, the integration of features like overmolds, specialized connectors, and rated jackets ensures that custom cable assemblies perform well in diverse settings, from office buildings to manufacturing plants, to the racks and servers stuffed with even more custom cable assemblies.
Summary
Telecommunication is an ever-evolving industry that demands precision, reliability, and adaptability. While the focus often shifts to the latest wireless technologies, the role of wired systems, and the custom cable assemblies that support them, remains critical.
By understanding the components and applications of custom cable assemblies, businesses can make informed decisions that enhance their telecommunication infrastructure. Whether it’s selecting the right connector, adding protective overmolds, or ensuring compliance with fire safety standards, every detail matters in building a reliable, high-performance system. Through innovation and attention to detail, manufacturers like Epec are helping to shape the future of communication.
Key Takeaways:
- Wired Telecommunication Remains Essential: Despite the rise of wireless technology, wired networks provide unmatched reliability, high-speed data transfer, and low latency, making them fundamental to global communication infrastructure.
- Custom Cable Assemblies Enhance Performance & Compliance: Specialized cable solutions, including plenum-rated jackets, EMI shielding, and custom overmolds, improve signal integrity, durability, and fire resistance, ensuring safe and efficient telecommunication operations.
- Connectors Play a Key Role in Network Stability: RJ11, RJ45, and RJ50 connectors are vital for voice, Ethernet, and high-performance networking applications, with shielding options available to prevent electromagnetic interference (EMI).
- Overmolds Improve Cable Longevity & Usability: Overmolded cables provide strain relief, ruggedization, and ergonomic handling, protecting against wear, moisture, and mechanical stress in demanding environments.
- Material Selection Impacts Availability & Performance: Choosing the right wire type, shielding, and jacket materials ensures compliance with safety regulations while preventing supply chain challenges that can impact production timelines.
- Custom Assemblies Enable Scalability & Reliability: Tailored solutions outperform off-the-shelf cables in industrial, military, and data center applications, offering long-term durability, environmental protection, and seamless integration into telecommunication networks.
