Achieving tight tolerances in CNC-machined parts isn't just about having the right equipment; it's about smart design from the very beginning. Whether you're developing aerospace components, medical devices, or precision instruments, understanding how to design for tight tolerances can mean the difference between a successful part and costly rework.
The key to success lies in balancing precision requirements with manufacturing realities. By implementing strategic design practices, you can achieve the tolerance you need while keeping costs reasonable and production timelines realistic.
Material Choice: The Foundation of Precision
The material you select fundamentally determines what tolerances are achievable and how consistently they can be maintained. Not all materials are created equal when it comes to precision machining.
Aluminum alloys like 6061-T6 and 7075-T6 are excellent choices for tight-tolerance work. These materials machine cleanly, have predictable thermal expansion properties, and maintain dimensional stability well. Their relatively low cutting forces also reduce tool deflection, which is crucial for maintaining accuracy.

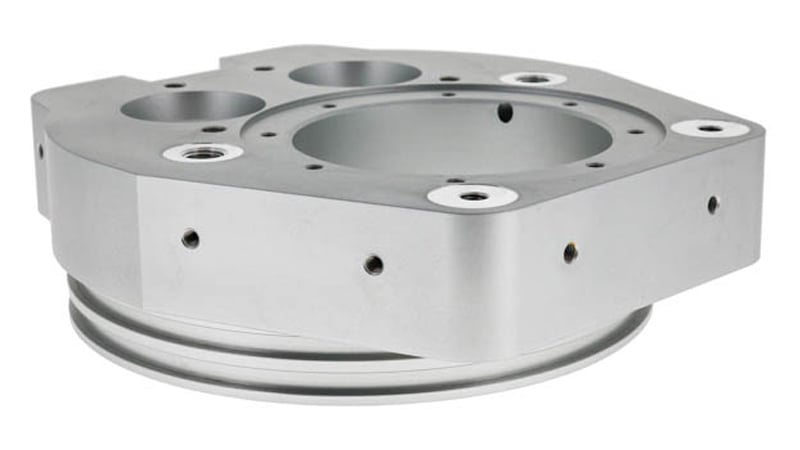

CNC machined parts with tight tolerances.
Steel alloys such as 4140 and 4340 offer exceptional dimensional stability once properly stress-relieved. While they require more robust tooling and generate higher cutting forces, their superior material properties make them ideal for components where both precision and strength are critical.
Stainless steel presents unique challenges due to its tendency to work-harden during machining. However, grades like 316L can achieve excellent tolerance when machined with proper techniques and sharp tooling.
Materials to approach with caution for tight tolerance work include plastics and composites, which can exhibit significant thermal expansion, moisture absorption, and stress relaxation. While achievable, tight tolerances in these materials often require special considerations for environmental conditions and measurement techniques.
The thermal expansion coefficient of your chosen material directly impacts achievable tolerances. A material with high thermal expansion will require more careful temperature control during both the machining and measurement phases.
Design for Manufacturability (DFM): Manufacturing-First Thinking
Designing with the manufacturing process in mind is perhaps the most impactful step you can take toward achieving tight tolerances. This means understanding the capabilities and limitations of CNC machining processes before finalizing your design.
Minimize the number of setups whenever possible. Each time a part is repositioned in the machine, you introduce potential sources of error. Design parts that can be machined in a single setup or, at minimum, require only one flip to complete all features.
Consider tool accessibility throughout your design process. Internal features should be designed with standard tool geometries in mind. A pocket that requires a custom tool will not only increase costs but may also compromise tolerance achievement due to tool deflection or vibration.
Avoid unnecessary complexity in areas that don't contribute to the part's function. Complex geometries increase machining time, require more sophisticated tooling, and introduce additional opportunities for error accumulation.
Design adequate draft angles where appropriate. Even small draft angles (0.5-1 degree) can significantly improve surface finish and reduce tool wear, both of which contribute to better tolerance achievement.
Specify Tolerances Only When Necessary
One of the most common mistakes in precision part design is over-tolerancing. Applying tight tolerances to every dimension on a drawing doesn't make a part better; it makes it more expensive and harder to manufacture.
Identify critical dimensions that directly impact part function. These might include mating surfaces, bearing diameters, or key mounting features. Apply your tightest tolerances only to these critical areas.
Use standard tolerance blocks for non-critical dimensions. Most shops work with standard tolerance blocks like ±0.005" or ±0.010" for general dimensions. Using these standards reduces confusion and often results in better actual tolerances since machinists are accustomed to working within these ranges.
Consider tolerance stack-up in your design. When multiple tolerances interact, the cumulative effect can be significant. Use worst-case analysis or statistical methods to ensure your tolerance stack-up doesn't result in non-functional parts.
Apply geometric dimensioning and tolerancing (GD&T) where appropriate. GD&T allows you to specify exactly what's important about a feature's form, fit, and function, often allowing looser individual tolerances while maintaining part functionality.
Allow for Tool Access and Proper Fixturing
The physical realities of CNC machining impose significant constraints on what's achievable. Designing with tool access and workholding in mind is essential for tight-tolerance work.
Eliminate or minimize undercuts wherever possible. Undercuts require specialized tooling, multiple setups, or both. When undercuts are necessary, design them with standard tool geometries in mind and provide adequate clearance for chip evacuation.
Provide clamping surfaces that won't interfere with machining operations. Workholding is critical for maintaining part position during machining, and poor clamping can introduce distortion that makes tight tolerances impossible to achieve.
Consider part orientation during machining. Features that are machined “uphill” (against gravity) are generally more accurate than those machined "downhill" due to reduced tool deflection and better chip evacuation.
Design for rigidity in both the part and the setup. Thin-walled sections or long, slender features are prone to deflection during machining. When such features are necessary, consider leaving additional material during rough machining and removing it in carefully controlled finish passes.
Involve Your Machinist Early
The machinist's expertise is invaluable in achieving tight tolerances. Engaging them early in the design process can save significant time and money while improving part quality.
Share design intent rather than just specifications. When a machinist understands what you're trying to achieve, they can often suggest design modifications that improve manufacturability without compromising function.
Discuss measurement and inspection requirements early. Some tolerance requirements may necessitate specific measurement techniques or equipment. Understanding these requirements upfront helps ensure the shop can meet your needs.
Review material specifications together. Your machinist may have insights into material behavior, availability, or processing requirements that could influence your material selection.
Consider the shop's capabilities when setting tolerance requirements. A shop with newer equipment, better environmental controls, or more sophisticated measurement capabilities may be able to achieve tighter tolerances than one without these resources.
Summary
Achieving tight tolerances in CNC-machined parts requires a holistic approach that begins with design and continues through material selection, manufacturing planning, and quality control.
By implementing these design practices, choosing appropriate materials, designing for manufacturability, applying tolerances judiciously, enabling proper tool access, and collaborating closely with your machinist, you can consistently achieve the precision your applications demand while maintaining cost-effectiveness and reasonable lead times.
Remember that tight tolerances are a means to an end, not an end in themselves. The goal is always to create parts that function reliably and cost-effectively. Sometimes, the tightest tolerance isn't the best tolerance; it's the one that ensures your part works perfectly in its intended application.
Key Takeaways
- Material Selection Impacts Precision: Materials like 6061-T6 and 7075-T6 aluminum and stress-relieved steels (e.g., 4140, 4340) are ideal for tight-tolerance parts due to their dimensional stability, while plastics and composites require special handling due to thermal expansion and moisture sensitivity.
- Design for Manufacturability (DFM): Minimize setups, simplify geometry, and ensure tool accessibility. Even small design changes (like adding draft angles or avoiding unnecessary complexity) can reduce error sources and improve tolerance achievement.
- Apply Tight Tolerances Selectively: Only critical dimensions should have the tightest tolerances. Use standard tolerance blocks for non-critical features and apply GD&T to communicate essential form, fit, and function requirements without overcomplicating the design.
- Plan for Tooling & Fixturing: Good workholding, proper clamping surfaces, and thoughtful part orientation are essential. Design with rigidity in mind and avoid thin, flexible features or deep undercuts that make tolerance control difficult.
- Collaborate with Machinists Early: Engaging machinists in the design phase helps optimize material choices, tolerance requirements, and inspection methods, often improving manufacturability and reducing cost without compromising performance.
