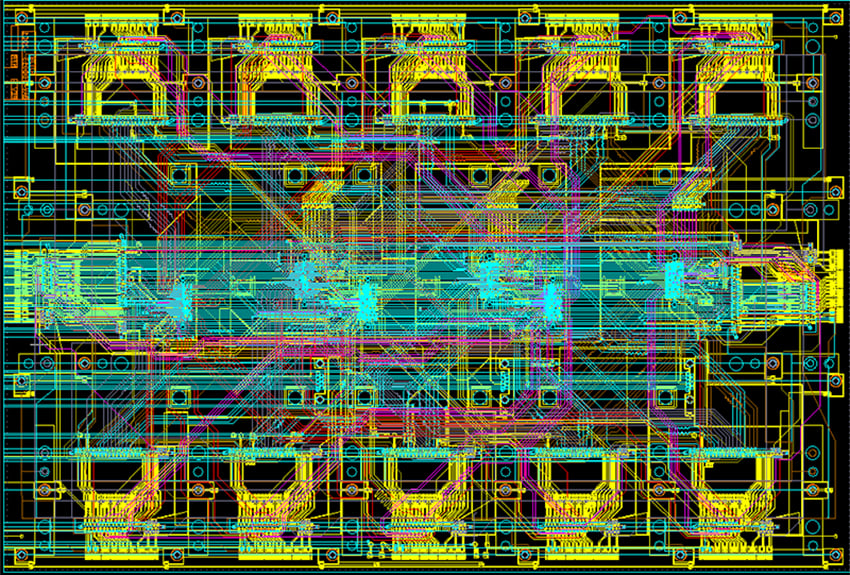

--- title: Designing PCBs for Extreme Environments description: Learn how to design PCBs for extreme environments with the right materials, thermal management, via design, coatings, and reliability testing. image: https://blog.epectec.com/hubfs/blog/pcbs-in-extreme-environments.jpg --- [![Epec Engineered Technologies](https://www.epectec.com/images/logo.png "Epec Engineered Technologies")](https://www.epectec.com/) [![Epec Engineered Technologies](https://www.epectec.com/images/logo.png "Epec Engineered Technologies")](https://www.epectec.com/) - [Articles](https://www.epectec.com/articles/) - [Blog](https://blog.epectec.com/) - [Webinars](https://www.epectec.com/webinar/) - [Videos](https://www.epectec.com/videos/) - [Case Studies](https://www.epectec.com/case-studies/) - [News & Events](https://www.epectec.com/news/) - [Customer Portal](https://system.netsuite.com/c.406760/site/NSlogin.html) - [About](https://www.epectec.com/about/overview/) - Back - [Company Overview](https://www.epectec.com/about/overview/) - [Our History](https://www.epectec.com/about/our-history/) - [Culture](https://www.epectec.com/about/culture/) - [Industries Served](https://www.epectec.com/about/industry/) - [Acquisitions](https://www.epectec.com/about/acquisitions.html) - [Operations](https://www.epectec.com/operations/) - Back - [Operational Excellence](https://www.epectec.com/operations/) - [Quality Philosophy](https://www.epectec.com/operations/quality-philosophy.html) - [Quality Assurance Process](https://www.epectec.com/operations/quality-assurance-process.html) - [Global Operations](https://www.epectec.com/operations/global-operations.html) - [Logistics & Supply Chain](https://www.epectec.com/operations/logistics-and-supply-chain.html) - [Inventory Stocking](https://www.epectec.com/operations/inventory-stocking.html) - [Approvals](https://www.epectec.com/operations/approvals.html) - [ITAR Registered](https://www.epectec.com/operations/itar-registered.html) - [Engineering](https://www.epectec.com/engineering/overview/) - Back - [Engineering Overview](https://www.epectec.com/engineering/overview/) - [Engineering Support](https://www.epectec.com/engineering/support/) - [Design Services](https://www.epectec.com/engineering/design-services/) - [EpecDFx™](https://www.epectec.com/engineering/epecdfx/) - [Free DFM File Check](https://www.epectec.com/engineering/free-dfm.html) - [PCB Impedance Calculator](https://www.epectec.com/engineering/impedance-calculator.html) - [Products](https://www.epectec.com/products/) - Back - [Overview](https://www.epectec.com/products/) - [Battery Packs](https://www.epectec.com/batteries/) - [Flex & Rigid-Flex PCBS](https://www.epectec.com/flex/) - [Cable Assemblies](https://www.epectec.com/cable-assemblies/) - [Printed Circuit Boards](https://www.epectec.com/pcb/) - [CNC Machining](https://www.epectec.com/cnc-machining/) - [User Interfaces](https://www.epectec.com/user-interfaces/) - [Flexible Heaters](https://www.epectec.com/flexible-heaters/) - [EC Fans & Motors](https://www.epectec.com/fans-motors/) [Battery Packs![Custom Battery Packs](https://www.epectec.com/images/new-nav/flyout-battery-packs.png "Batteries and Custom Battery Packs")](https://www.epectec.com/batteries/) --- [CNC Machining![CNC Machining](https://www.epectec.com/images/new-nav/flyout-cnc-machining.png "CNC Machining")](https://www.epectec.com/cnc-machining/) [Flex & Rigid-Flex PCBs![Flex and Rigid-Flex Circuits](https://www.epectec.com/images/new-nav/flyout-flex-and-rigid-flex.png "Flex and Rigid-Flex Circuits")](https://www.epectec.com/flex/) --- [User Interfaces![User Interfaces](https://www.epectec.com/images/new-nav/flyout-user-interfaces2.png "User Interfaces Product Solutions")](https://www.epectec.com/user-interfaces/) [Cable Assemblies![Cable Assemblies](https://www.epectec.com/images/new-nav/flyout-cable-assemblies.png "Cable Assemblies")](https://www.epectec.com/cable-assemblies/) --- [Flexible Heaters![Flexible Heaters](https://www.epectec.com/images/new-nav/flyout-flexible-heaters.png "Flexible Heaters")](https://www.epectec.com/flexible-heaters/) [Printed Circuit Boards![Printed Circuit Boards](https://www.epectec.com/images/new-nav/flyout-printed-circuit-boards2.png "Printed Circuit Boards")](https://www.epectec.com/pcb/) --- [EC Fans & Motors![EC Fans and Motors](https://www.epectec.com/images/new-nav/flyout-fans-and-motors.png "EC Fans and Motors")](https://www.epectec.com/fans-motors/) - [Design Guides](https://www.epectec.com/guides/) - [Design Guides](https://www.epectec.com/guides/) - Back - Resources - Back - [Articles](https://www.epectec.com/articles/) - [Blog](https://blog.epectec.com/) - [Webinars](https://www.epectec.com/webinar/) - [Videos](https://www.epectec.com/videos/) - [Case Studies](https://www.epectec.com/case-studies/) - [News & Events](https://www.epectec.com/news/) - [Customer Portal](https://system.netsuite.com/c.406760/site/NSlogin.html) - [Contact Us](https://www.epectec.com/contact/) - Back - [Contact Information](https://www.epectec.com/contact/) - [Our Sales Team](https://www.epectec.com/contact/our-sales-team.html) - [Office Locations](https://www.epectec.com/contact/office-locations.html) - [Career Opportunities](https://www.epectec.com/contact/career-opportunities.html) - [InstantPCB*Quote*™](https://www.epectec.com/instantpcbquote/) - Back - [Overview](https://www.epectec.com/instantpcbquote/) - [Login](https://secure.epecpcb.com/epec/) - [Register](https://secure.epecpcb.com/epec/index2.jsp) [![](https://www.epectec.com/images/InstantPCBQuote-logo.png)](https://www.epectec.com/instantpcbquote/) [Login](https://secure.epecpcb.com/epec/) [Register](https://secure.epecpcb.com/epec/index2.jsp) Register to Quote and Order Your PCBs Fast, Easy & Online, 24/7 - [Home](https://www.epectec.com/) - [Blog](https://blog.epectec.com/) - Designing PCBs for Extreme Environments Share This Page: [LinkedIn](https://blog.epectec.com/#linkedin) [X](https://blog.epectec.com/#x) [Facebook](https://blog.epectec.com/#facebook) [Email](https://blog.epectec.com/#email) # Designing PCBs for Extreme Environments [![Angie Brown](https://blog.epectec.com/hubfs/Blog-Authors/angie-brown.jpg "Angie Brown")](https://blog.epectec.com/author/angie-brown) Written by [Angie Brown](https://blog.epectec.com/author/angie-brown) Posted on September 29, 2026 at 8:59 AM ![Angie Brown](https://blog.epectec.com/hubfs/Blog-Authors/angie-brown.jpg "Angie Brown") - [Tweet](https://twitter.com/share) [Printed circuit boards](https://www.epectec.com/pcb/) used in extreme environments must withstand temperature extremes, vibration, shock, moisture, chemicals, corrosion, and high electrical stress. That reliability starts at the design stage. Materials, [thermal management](https://blog.epectec.com/thermal-management-solutions-in-multilayer-pcb-fabrication), mechanical construction, via geometry, surface finish, electrical spacing, environmental protection, and manufacturing controls all affect long-term PCB performance. For [aerospace](https://www.epectec.com/pcb/military-and-aerospace-pcbs.html), [defense](https://www.epectec.com/pcb/military-and-aerospace-pcbs.html), [industrial](https://www.epectec.com/pcb/industrial-applications.html), automotive, [medical](https://www.epectec.com/pcb/medical-device-pcb.html), energy, and other high-reliability applications, these factors should be addressed early. ## Start With the Right PCB Materials [Material selection](https://blog.epectec.com/how-to-select-pcb-core-materials) is the foundation of harsh-environment PCB reliability. For high-temperature applications, PCB designers commonly look for laminates with a glass transition temperature (Tg) of at least 170°C and a high decomposition temperature (Td), often above 340°C for demanding applications. Z-axis coefficient of thermal expansion (CTE) is also important because excessive expansion through PCB thickness can stress plated through-holes during thermal cycling. [![Free Download: Top 5 Printed Circuit Board Stack-Up Design Mistakes](https://no-cache.hubspot.com/cta/default/707152/d1955bb8-646d-42b8-895f-f03297830c31.png)](https://cta-redirect.hubspot.com/cta/redirect/707152/d1955bb8-646d-42b8-895f-f03297830c31) Depending on the environment, [polyimide](https://www.epectec.com/flex/material-properties.html), [PTFE](https://blog.epectec.com/ptfe-vs-fr4-pcb-laminate-materials-cost-and-performance-options), ceramic-filled laminates, or specialty hydrocarbon materials may be appropriate. Moisture absorption, CAF resistance, and the applicable [IPC-4101 slash sheet](https://blog.epectec.com/understanding-an-ipc-4101-slash-sheet) should also be reviewed. ## Design for Thermal Performance Heat can affect laminate stability, solder joints, plated holes, components, and conductor performance. Design around the maximum continuous operating temperature with an appropriate margin. High-current circuits may require [heavier copper](https://www.epectec.com/articles/heavy-copper-pcb-design.html), often 2-6 oz, for current carrying and heat spreading. Thermal vias, copper planes, and heat spreaders can move heat away from critical components. IMS or metal-core constructions may also be appropriate for high-power applications. Early thermal simulation can help identify hot spots before production. ![PCB designed to perform in all environments](https://blog.epectec.com/hs-fs/hubfs/blog/pcbs-in-extreme-environments.jpg?width=850&height=575&name=pcbs-in-extreme-environments.jpg) *PCBs are designed to perform in all environments, from temperature extremes to excess vibration, shock, voltage swings, moisture, or corrosive chemicals.* ## Account for Mechanical Stress, Vibration, and Shock Circuit board thickness, mounting points, component placement, and cutout geometry all affect mechanical reliability. Excessive board flex can stress solder joints, plated holes, and component terminations. Maintain adequate clearance from routed edges and scored areas and use rounded cutouts to reduce stress concentrations. Larger annular rings, teardrops, staking, and underfill may improve durability where additional support is needed. Designs for harsh environments should ultimately be validated through representative vibration and mechanical shock testing. ## Build Via Reliability Into the Stack-Up [Via design](https://blog.epectec.com/pcb-vias-everything-you-need-to-know) becomes more critical as PCB thickness, layer count, and reliability requirements increase. Conservative through-hole aspect ratios can improve plating consistency and durability. An aspect ratio of 8:1 or less is often a practical target where the design allows it. Filled and capped vias may support thermal or assembly requirements, while stacked microvias require careful qualification. For critical power and ground connections, redundant vias can add robustness. Plated through-hole copper thickness should also meet the applicable IPC performance class. ## Select the Right Surface Finish Surface finish should be chosen based on solderability, corrosion exposure, storage, contact wear, and operating conditions. [ENIG](https://blog.epectec.com/urban-legends-of-pcb-processes-enig-black-pad) and [ENEPIG](https://blog.epectec.com/enepig-benefits-for-gold-wire-bonding) are common options for reliable solderable surfaces. Hard gold may be appropriate for connector fingers, while immersion silver may work well when storage conditions are controlled. For marine, industrial, or chemically aggressive environments, minimize exposed copper, evaluate dissimilar metals, and confirm chemical compatibility. ## Protect Signal Integrity High-speed PCB designs still need [controlled impedance](https://www.epectec.com/pcb/controlled-impedance.html) and stable electrical performance under harsh conditions. Low-loss dielectric materials may be required at higher frequencies. Signal discontinuities should be minimized, and via stubs may need to be reduced through back drilling. Separate noisy power circuits from sensitive signals where practical, and design grounding to control EMI and return-current paths. ## Protect Against Moisture and Contamination Environmental protection may need to extend beyond the PCB material and [surface finish](https://www.epectec.com/articles/pcb-surface-finish-advantages-and-disadvantages.html). [Conformal coatings](https://blog.epectec.com/pcb-conformal-coating-with-battery-packs) can protect against moisture, dust, and contaminants. Parylene may be appropriate for more severe chemical or humidity exposure. Potting or encapsulation can provide additional protection from moisture, shock, and vibration, although these methods can affect heat transfer, weight, and serviceability. Enclosed assemblies should also meet the appropriate ingress protection requirements. ## Consider High-Voltage Reliability High-voltage PCB designs may require increased creepage and clearance to reduce the risk of arcing, tracking, or insulation breakdown. Surge and transient protection may also be necessary, and conductor geometry should avoid areas of excessive current crowding. Humidity, contamination, altitude, and coating selection can all affect electrical spacing requirements, so the actual operating environment must be considered. ## Design With Manufacturing in Mind A rugged design still depends on a stable manufacturing process. High-reliability applications may require IPC Class III or Class IIIA criteria. Copper should be balanced across the stack-up, and [warp and twist limits](https://blog.epectec.com/understanding-bow-and-twist-of-printed-circuit-boards) may need tighter control. Sequential lamination should be used only where required, since additional cycles increase manufacturing complexity and thermal stress. Test coupons can also verify impedance, plating quality, and other reliability requirements. ## Validate the PCB for Its Intended Environment Design rules alone cannot prove that a PCB will survive in service. Qualification testing should reflect the conditions the assembly will actually face. Testing may include thermal cycling, temperature extremes, humidity, vibration, shock, salt fog, chemical exposure, or electrical stress. **Applicable standards may include:** - IPC-2221 for generic PCB design - IPC-2222 for rigid PCB design - IPC-6012 for rigid PCB qualification and performance - IPC-A-600 for bare board acceptability - IPC-A-610 for electronic assembly acceptability - IPC-9701 for solder joint reliability testing - IPC-TM-650 for PCB test methods - MIL-STD-810 for environmental testing - RTCA DO-160 for airborne equipment - NASA EEE-INST-002 for high-reliability space applications Not every standard applies to every design. Requirements should match the product, industry, and operating environment. ## Extreme Environment PCB Design Checklist Before release, confirm that: - Operating temperature range is defined - Materials are qualified for the environment - Thermal performance has been reviewed - Controlled impedance is verified - Stack-up and copper balance are optimized - Via reliability has been assessed - Creepage and clearance are verified - Surface finish and environmental protection are appropriate - Manufacturing capabilities are confirmed - IPC performance class is identified - Reliability testing requirements are documented ## Summary PCB reliability in extreme environments depends on the entire design working together. Materials, heat management, mechanical construction, vias, surface finish, electrical spacing, environmental protection, and manufacturing controls all play a role. Addressing these factors early can reduce manufacturing problems and field failures. Application-specific testing can then confirm that the PCB performs reliably under the conditions it will actually face. --- ## Key Takeaways - **Material selection** sets the foundation for PCB reliability in extreme environments. - **Thermal management** helps protect components, plated holes, and solder joints from heat-related failures. - **Mechanical design** must account for vibration, shock, board flexing, and component support. - **Surface finishes, coatings, and potting** can help protect against moisture, chemicals, and corrosion. - **Environmental testing** should reflect the PCB’s actual operating conditions to confirm long-term reliability. - [Tweet](https://twitter.com/share) Topics: [Printed Circuit Boards](https://blog.epectec.com/topic/printed-circuit-boards), [Product Design](https://blog.epectec.com/topic/product-design) --- Next | [All posts](https://blog.epectec.com/all) | [Previous](https://blog.epectec.com/shielded-vs-unshielded-cables-making-the-right-choice) [![New Call-to-action](https://no-cache.hubspot.com/cta/default/707152/ffaab7b9-6c7e-4e48-9dc5-03b5c5fddbd4.png)](https://cta-redirect.hubspot.com/cta/redirect/707152/ffaab7b9-6c7e-4e48-9dc5-03b5c5fddbd4) ## Leave a Comment --- ## Related Posts --- ### Recent Posts --- ### Posts by Topic - [Printed Circuit Boards (160)](https://blog.epectec.com/topic/printed-circuit-boards) - [Product Design (137)](https://blog.epectec.com/topic/product-design) - [Battery Packs (121)](https://blog.epectec.com/topic/battery-packs) - [Cable Assemblies (102)](https://blog.epectec.com/topic/cable-assemblies) - [Flex & Rigid-Flex PCB's (95)](https://blog.epectec.com/topic/flex-rigid-flex-pcbs) - [Electronics Industry (61)](https://blog.epectec.com/topic/electronics-industry) - [User Interfaces (55)](https://blog.epectec.com/topic/user-interfaces) - [Quality Solutions (33)](https://blog.epectec.com/topic/quality-solutions) - [Flexible Heaters (30)](https://blog.epectec.com/topic/flexible-heaters) - [Events, Training, and Support (9)](https://blog.epectec.com/topic/events-training-and-support) - [RF Products (7)](https://blog.epectec.com/topic/rf-products) - [CNC Machining (3)](https://blog.epectec.com/topic/cnc-machining) - [Fans & Motors (1)](https://blog.epectec.com/topic/fans-motors) See All --- --- ### Need Help with A Project? [![Request Design Support](https://blog.epectec.com/hs-fs/hubfs/blog/design-support-ad.jpg?width=350&name=design-support-ad.jpg)](https://info.epectec.com/request-design-support) Our team of engineers are here to help you with all your product needs. [Request Design Support](https://cta-redirect.hubspot.com/cta/redirect/707152/0d3cd574-22cb-48a2-867e-1a7ffba28403) Manufacturing That Eliminates Risk & Improves Reliability [sales@epectec.com](mailto:sales@epectec.com?subject=Website%20Information%20Request) [(888) 995-5171](tel:888-995-5171) ##### Support & Contact Our knowledgeable staff has many years of experience in the industry. We welcome the opportunity to put our skills to work for you! Please contact us with any questions or requests. - [176 Samuel Barnet Blvd, New Bedford, MA](https://maps.app.goo.gl/Q6JVMv3eQgw29fNY8) - [sales@epectec.com](mailto:sales@epectec.com?subject=Website%20Information%20Request) - [(888) 995-5171](tel:888-995-5171) --- ###### Certifications [![UL Certified Manufacturer](https://www.epectec.com/images/certified-ul.png "UL Certified Manufacturer")](http://www.ul.com/) [![ITAR Registered Manufacturer](https://www.epectec.com/images/certified-itar.png "ITAR Registered Manufacturer")](https://www.epectec.com/operations/itar-registered.html) [![RoHS Compliant Manufacturer](https://www.epectec.com/images/certified-rohs-compliant.png "RoHS Compliant Manufacturer")](https://www.epectec.com/pcb/rohs-compliant.html) [![ISO9001 Certified Manufacturer](https://www.epectec.com/images/certified-iso9001.png "ISO9001 Certified Manufacturer")](https://www.epectec.com/operations/approvals.html) [![ISO27001 Certified Manufacturer](https://www.epectec.com/images/certified-iso27001.png "ISO27001 Certified Manufacturer")](https://www.epectec.com/operations/approvals.html) --- - ##### About - [Company Overview](https://www.epectec.com/about/overview/) - [Our History](https://www.epectec.com/about/our-history/) - [Culture](https://www.epectec.com/about/culture/) - [Industries Served](https://www.epectec.com/about/industry/) - [Acquisitions](https://www.epectec.com/about/acquisitions.html) - ##### Operations - [Operational Excellence](https://www.epectec.com/operations/) - [Quality Philosophy](https://www.epectec.com/operations/quality-philosophy.html) - [Quality Assurance Process](https://www.epectec.com/operations/quality-assurance-process.html) - [Global Operations](https://www.epectec.com/operations/global-operations.html) - [Logistics & Supply Chain](https://www.epectec.com/operations/logistics-and-supply-chain.html) - [Inventory Stocking](https://www.epectec.com/operations/inventory-stocking.html) - [Approvals](https://www.epectec.com/operations/approvals.html) - [ITAR Registered](https://www.epectec.com/operations/itar-registered.html) - ##### Engineering - [Engineering Overview](https://www.epectec.com/engineering/overview/) - [Engineering Support](https://www.epectec.com/engineering/support/) - [Design Services](https://www.epectec.com/engineering/design-services/) - [EpecDFx™](https://www.epectec.com/engineering/epecdfx/) - [Free DFM File Check](https://www.epectec.com/engineering/free-dfm.html) - [PCB Impedance Calculator](https://www.epectec.com/engineering/impedance-calculator.html) - ##### Products - [Overview](https://www.epectec.com/products/) - [Battery Packs](https://www.epectec.com/batteries/) - [Flex & Rigid-Flex PCBS](https://www.epectec.com/flex/) - [Cable Assemblies](https://www.epectec.com/cable-assemblies/) - [Printed Circuit Boards](https://www.epectec.com/pcb/) - [CNC Machining](https://www.epectec.com/cnc-machining/) - [User Interfaces](https://www.epectec.com/user-interfaces/) - [Flexible Heaters](https://www.epectec.com/flexible-heaters/) - [EC Fans & Motors](https://www.epectec.com/fans-motors/) ##### Social Community Join our Social Community and keep in touch with all our latest technology investments, current news, upcoming events, and promotions. --- © 2026 Copyright Epec, LLC. All Rights Reserved. [Tariff Resources](https://www.epectec.com/tariff-resources/)|[Privacy Policy](https://www.epectec.com/privacy-policy/)|[Term & Conditions](https://www.epectec.com/terms/site.html)|[Sitemap](https://www.epectec.com/sitemap.html) ```json { "@context" : "https://schema.org", "@type" : "BlogPosting", "author" : { "@type" : "Person", "name" : "Angie Brown", "url" : "https://blog.epectec.com/author/angie-brown" }, "dateModified" : "2026-09-29T12:59:00.991Z", "datePublished" : "2026-09-29T12:59:00.000Z", "headline" : "Designing PCBs for Extreme Environments", "image" : [ "https://blog.epectec.com/hubfs/blog/pcbs-in-extreme-environments.jpg" ], "mainEntityOfPage" : { "@id" : "https://blog.epectec.com/designing-pcbs-for-extreme-environments", "@type" : "WebPage" }, "publisher" : { "@type" : "Organization", "logo" : { "@type" : "ImageObject", "url" : "https://blog.epectec.com/hubfs/image/logo.png" }, "name" : "Epec Engineered Technologies" } } ```
