When starting a new PCB design or revision, considering the end application is usually at the forefront. Most of what we produce here at Epec is built to IPC-6012, the latest revision and Class II. Industry standards, as defined, and, of course, customer specifications, fabrication drawings, and the purchase order related to it are all taken into consideration, but these are typically part of the fabrication-to-quote and occur when the design is complete. So, what should be considered long before the quote and purchase?
In everything we do, every build-to-print product, we strive to exceed the standard. However, in some industries where failure is not an option, printed circuit boards (PCBs) must deliver exceptional reliability under the most demanding operating conditions. Aerospace systems, military electronics, medical life-support equipment, and mission-critical industrial controls often require compliance with IPC Class III standards, the highest performance classification defined by the IPC.
Designing a PCB to IPC Class III requirements involves more than selecting quality materials and tight manufacturing tolerances. It requires a comprehensive approach that addresses reliability, environmental durability, manufacturability, and long-term performance throughout the product lifecycle.
This blog post explores the key considerations for designing PCBs that meet IPC Class III requirements and aerospace-grade expectations.
What Is IPC Class III?
IPC Class III, defined in the IPC-A-600 and IPC-6012 standards, represents products that require continued performance on demand. These assemblies are intended for applications where equipment downtime cannot be tolerated and where end-use environments may be harsh or extreme.
Typical IPC Class III applications include aerospace and avionics systems, satellite communications equipment, defense electronics, flight control systems, medical life-support devices, critical transportation and industrial controls, to name a few.

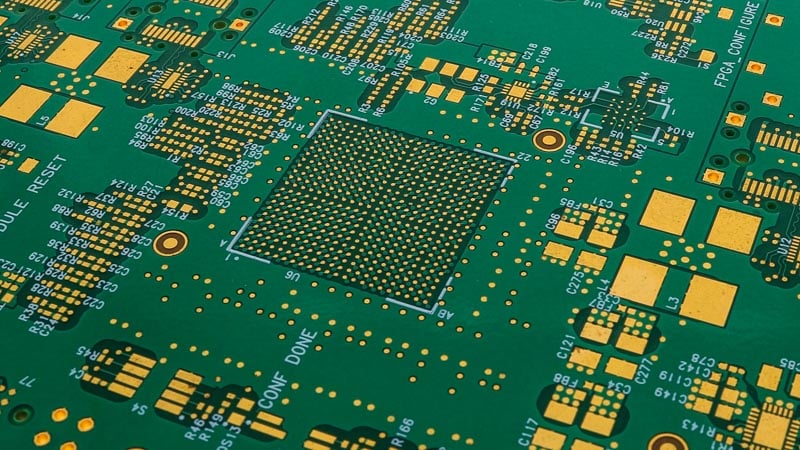

PCB manufactured for Class III application.
Compared to Class I and Class II products, Class III PCBs are subject to stricter requirements for conductor integrity, plating quality, solderability, cleanliness, and inspection criteria.
Material Selection: The Foundation of Reliability
The first step in achieving Class III performance is selecting the appropriate laminate system. With so many different laminate suppliers, how do you decide and build into your fabrication package what to use? For starters, knowing the extent of your design is a must: what is the job of the PCB, and what is needed from my laminate - is it high-speed, controlled impedance, sensitive to electronics around it, or is the laminate not critical and can be reliable without added cost? You should be able to consult your supplier about reliable, readily available, and cost-effective material. Stack-up considerations and tolerances as well without a final design.
Let’s look at what is important when it comes to material characteristics to guide you to what is needed.
High Glass Transition Temperature (Tg)
Higher Tg materials resist thermal stress during assembly and operation, helping prevent delamination and mechanical degradation. The higher Tg allows assembly to have multiple waves, rework, and some hand assembly.
Low Coefficient of Thermal Expansion (CTE)
Low CTE minimizes stress between copper and laminate during temperature cycling, reducing the risk of barrel cracking and interconnect failures.
High Thermal Stability
Materials with high decomposition temperatures (Td) provide greater resistance to long-term thermal aging and lead-free assembly processes.
Controlled Dielectric Properties
For aerospace, RF and high-speed digital applications, stable dielectric constant (Dk) and low dissipation factor (Df) are critical for signal integrity. Common aerospace-grade materials include advanced FR-4, polyimide laminates, and low-loss high-speed materials depending on system requirements.
All laminates are easily searchable for datasheets online; however, not all are readily available from all suppliers. If you know the basics of what your design needs, consulting your supplier is the easiest way to prevent time loss to production.
Via Design and Interconnect Reliability
Interconnect failures are among the most common causes of PCB reliability issues. IPC Class III designs place special emphasis on the via construction. Gone are the days of “it’s just a via hole”. The via hole now has a more important and impressive role than ever before, with many types and process-related specialties.
Key Design Considerations
Class III PCBs aren’t typically the highest of technology or most complex to build, but considering these items can save fallout, time, and cost. When you increase annular ring sizes where possible, maintain conservative aspect ratios, avoid hole-to-hole spacing interference, and consider copper-to-copper spacing, these items alone make for a better product.
A couple of other items, such as specifying adequate copper plating thickness, minimize the use of specialty vias such as blind, buried, or stacked via structures unless required. If spacing is an issue, utilize via-in-pad. Yes, it adds cost, but it increases land, is highly reliable, and has become a standard process in many manufacturing settings. A robust via structure significantly improves performance during thermal cycling and vibration exposure common in aerospace environments.
Copper Weight and Trace Design
Class III products often require enhanced conductor robustness, so designers should consider copper weight and spacing at all costs. Often, manufacturing is not considered in the design/layout/routing process, causing manufacturing challenges that may not have occurred if considered in advance.
Use trace widths that exceed minimum manufacturing capabilities when the design permits it and when it does not allow for added space in all copper areas. Why is space more critical than circuit width to manufacturing? The answer is simply: we need space to allow for expansion. Copper is a waste product for much of the surface of the PCB layer. In order for production to meet your desired copper, we must add an etch factor to the area to allow for loss, and that factor is aligned with the weight of the copper as well.
For example, a 5mil trace with a 5mil space is modified up to 5.5mil or 6mil to allow for the reduction in width during processing. If that same 5mil trace is designed into a 4mil space because we do not consider space, it is much more difficult to compensate for loss.
Incorporate sufficient copper weight for current-carrying requirements without overcompensating the ounce. Additional design margin can improve long-term reliability and manufacturing yield.
Thermal Management
Aerospace electronics frequently operate in environments with wide temperature variations and limited cooling options. Effective thermal design techniques include the use of via-in-pad, copper balance within the layer construction including the use of copper pour, the use of dead pads, thermal planes, reliefs, and component placement optimization. Managing thermal gradients helps prevent solder joint fatigue and extends overall system life.
Design for Manufacturability (DFM)
At Epec, we are 100% committed to helping you with a better product first. Whether it is a Class III, II, or I design, it must not only function correctly but also be consistently manufacturable. We offer a free-to-you-always DFM to review your project, reduce production time, prototyping, and cost.
Important DFM practices include design rules that match your project, suggestions for improvement for processing, yield, and lead time. How to avoid pushing minimum trace widths, spaces, and hole sizes unless absolutely necessary.
Construction hand in hand with design, finding the right stack-up to fit your project while considering registration, trace and space, copper, common materials, stock and balance. A symmetrical stack-up suggestion and array layout can cut manufacturing costs, align with your pricing better, and prevent warp and twist.
We can also include complete specifications for material type as related to IPC-4101, impedance-controlled stack-up verification or adjustments, via hole treatment suggestions, copper vs design corrections, and conclude that you meet the Class III as intended. Close collaboration between design, fabrication, and assembly teams is essential.
Surface Finish Selection
The chosen surface finish can significantly impact reliability and assembly performance. The most common finishes are ENIG (Electroless Nickel Immersion Gold), ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold), Selective Hard Gold, Immersion Silver (application dependent), and HASL (Hot Air Solder Level). Selection should be based on environmental exposure, shelf-life requirements, wire bonding needs, and connector wear considerations.
Inspection and Verification Requirements
IPC Class III products require more stringent inspection criteria than lower classifications. The typical verification methods include automated optical inspection (AOI), X-ray inspection, microsection analysis, solderability testing, thermal stress testing, electrical testing, and cross-sectional plating evaluation. Many aerospace programs also require additional qualification testing such as vibration, shock, humidity, and thermal cycling. Always have your design team specify within the fabrication package what the expected documents and tests are.
Documentation and Traceability
Aerospace-grade products demand complete traceability throughout the manufacturing process. Best production practices include material lot tracking, process control records, inspection reports, test documentation, revision control, and quality controls. Comprehensive documentation supports certification efforts and long-term product support.
Summary
Designing a PCB to IPC Class III standards requires a reliability-first mindset throughout the entire development process. From material selection and via design to thermal management and inspection, every design decision contributes to long-term performance in mission-critical environments.
By incorporating robust design margins, selecting proven materials, and partnering with experienced Class III manufacturers, engineers can create aerospace-grade PCBs capable of delivering dependable operation under the most demanding conditions. In applications where failure is unacceptable, adherence to IPC Class III requirements is not simply a quality objective; it is a necessity.
Key Takeaways
- IPC Class III standards are designed for mission-critical applications where equipment failure or downtime cannot be tolerated.
- Material selection should account for thermal stability, expansion, signal integrity, availability, and the specific demands of the PCB application.
- Conservative via structures, larger annular rings, adequate plating, and practical aspect ratios can improve reliability during thermal cycling and vibration.
- Trace spacing, copper weight, stack-up balance, and thermal management should be considered early to improve manufacturability and long-term performance.
- Class III compliance requires thorough inspection, testing, documentation, and traceability throughout the manufacturing process.
